C9500-48Y4C-1A Technical Specifications

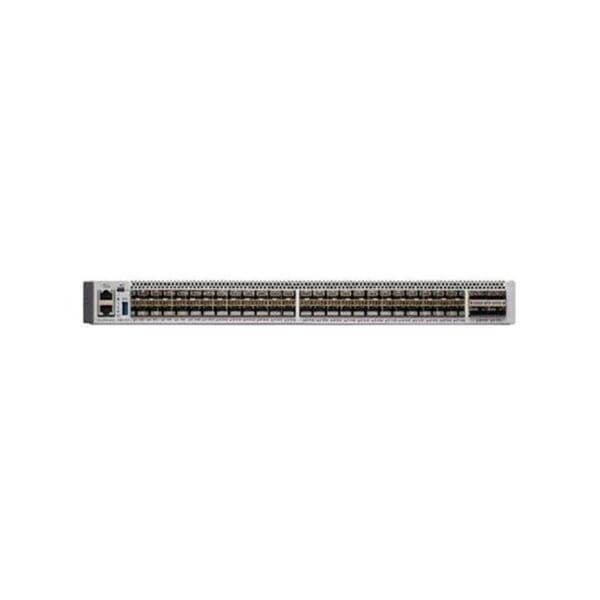

Cisco Catalyst 9500 Switch 48 Port Managed Rack Mountable
Cabinet
Chassis Built-in Devices : RFID tag
Capacity
Type : FNF entries
Value : 96000
Type : Host IPv4 routes
Value : 90000
Type : Host IPv6 routes
Type : Indirect IPv4 routes
Value : 212000
Type : Indirect IPv6 routes
Type : Multicast scale
Value : 32000
Type : QoS ACL scale
Value : 16000
Type : Routing table entries
Value : 80000
Type : Security ACL scale
Value : 270000
Type : Switched virtual interfaces (SVIs)
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 18 in
Height : 1.7 in
Weight : 21.96 lbs
Width : 17.5 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 149 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -4 °F
