Refurbished C9500-40X-A Technical Specification

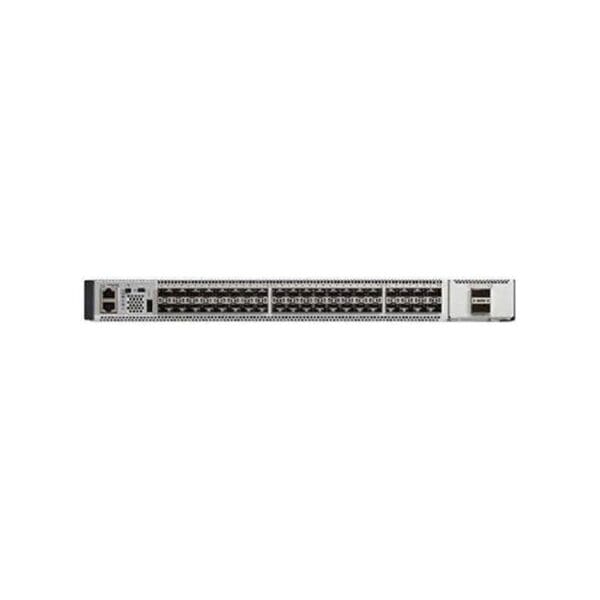

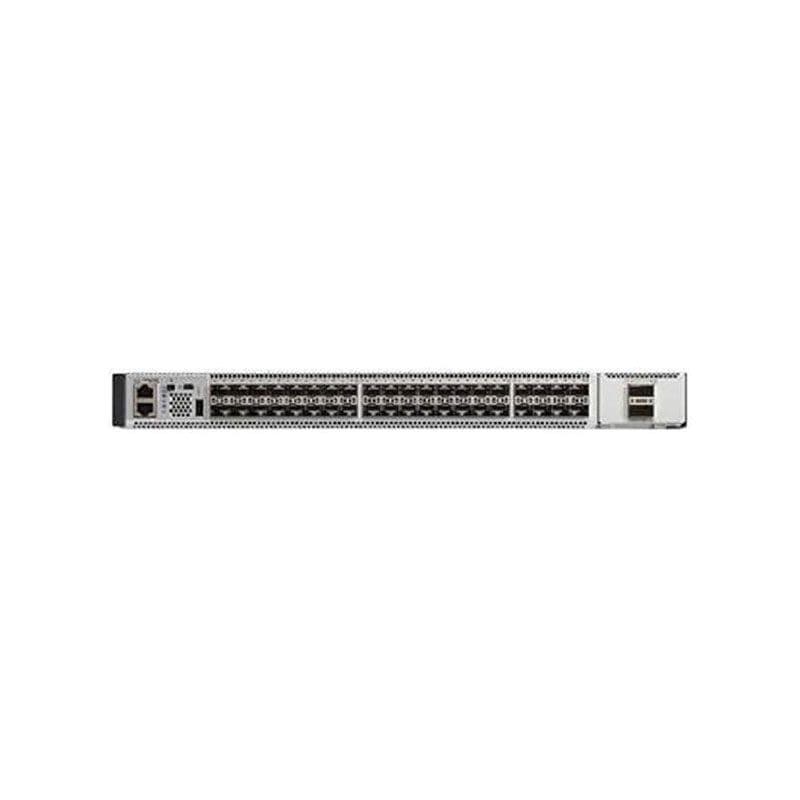

Cisco 9500 Network Switch 40 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :9500
Edition :Network Advantage
Packaged Quantity :1
Chassis
Built-in Devices :RFID tag
Processor
Installed Qty :1
Clock Speed :2.4 GHZ
RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :16 GB
Flash Memory
Installed Size :16 GB, 16 GB
Performance
Performance :Forwarding rate: 720 Mpps, Switching capacity (full duplex): 480 Gbps
Capacity
Capacity :FNF entries: 512000, Host IPv4 routes: 32000, Host IPv6 routes: 16000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 48000, QoS ACL scale: 18000, Routing table entries: 64000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :40
Advanced Switching :Layer 3
Routing Protocol :BGP, EIGRP, IGMP, IS-IS, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, VRRP
MAC Address Table Size :64K entries
Jumbo Frame Support :9198 bytes
Manageable :Yes
Remote Management Protocol :NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Power Over Ethernet (PoE) :UPOE
Features :Access Control List (ACL) support, Application Visibility and Control (AVC), Built-in ASIC, Cisco StackWise Virtual, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), IGMP snooping, IPv6 support, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, LLDP support, Location ID Separation Protocol (LISP), MACsec support, MLD snooping, NAT support, NetFlow, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), Open Shortest Path First (OSPF), PAT support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Syslog support, Third-party IP Address Management (IPAM) integration, TrustSec support, Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED), Zero-touch provisioning (ZTP)
Compliant Standards :IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :40
Type :10 Gigabit SFP+
Interface Provided
Interfaces :2 x USB 3.0, 40 x 10GBase-X SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Installed Qty :1
Max Supported Qty :2
Power Provided :950 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Features :Front-to-rear air?ow
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :256-bit AES
MTBF :180,640 Hours
Compliant Standards :AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, Plug and Play, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :21.5 inch
Height :1.7 inch
