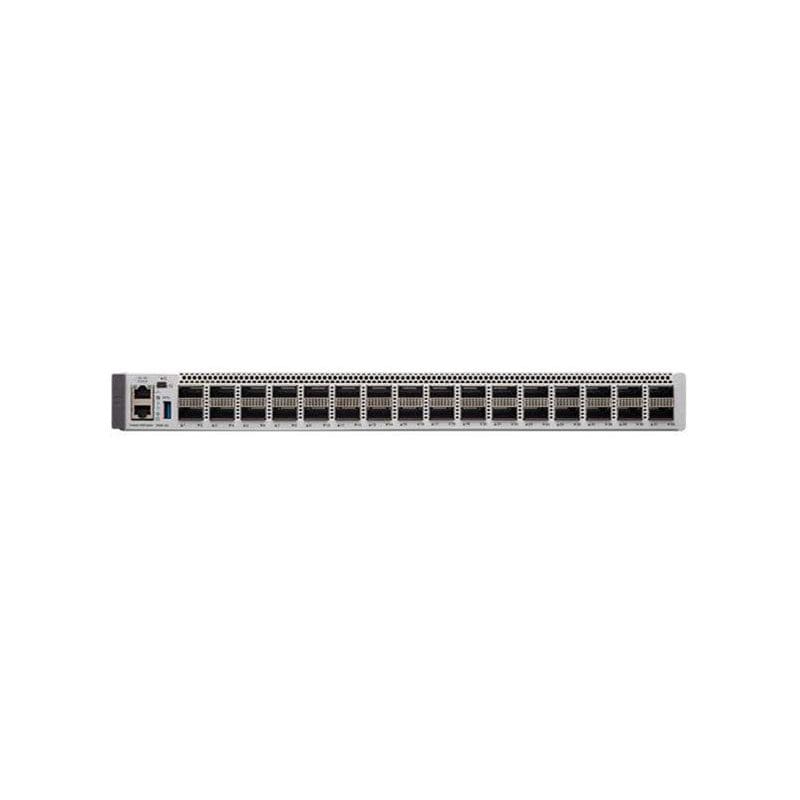

Refurbished C9500-32QC-A Technical Specification
Cisco 9500 Network Switch 32 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :9500
Edition :Network Advantage
Packaged Quantity :1
Chassis
Built-in Devices :RFID tag
Processor
Installed Qty :1
Clock Speed :2.4 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :16 GB, 16 GB
Performance
Performance :Forwarding rate: 1 Bpps, Switching capacity (full duplex): 3.2 Tbps
Capacity
Capacity :FNF entries: 96000, Host IPv4 routes: 90000, Host IPv6 routes: 90000, Indirect IPv4 routes: 212000, Indirect IPv6 routes: 212000, Multicast scale: 32000, QoS ACL scale: 16000, Routing table entries: 80000, Security ACL scale: 270000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :40 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :32
Advanced Switching :Layer 3
Routing Protocol :BGP, EIGRP, IGMP, IS-IS, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RIPng, VRRP
MAC Address Table Size :64K entries
Jumbo Frame Support :9198 bytes
Manageable :Yes
Remote Management Protocol :NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Features :Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, Control plane protection (CoPP), DHCP support, Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, Integrated Wireshark, Layer 3 VPN (L3VPN) support, MACsec support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Ports
Qty :32
Interface Provided
Interfaces :2 x USB 3.0, 32 x 100Gbit/40Gbit LAN QSFP
Software
Type :Cisco IOS XE 16.8.1
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Installed Qty :1
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :256-bit AES
MTBF :307,200 Hours
Compliant Standards :AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
Dimensions & Weight
Width :17.5 inch
Depth :18 inch
Height :1.7 inch
Weight :21.85 lbs
