Refurbished C9500-24X-E Technical Specification

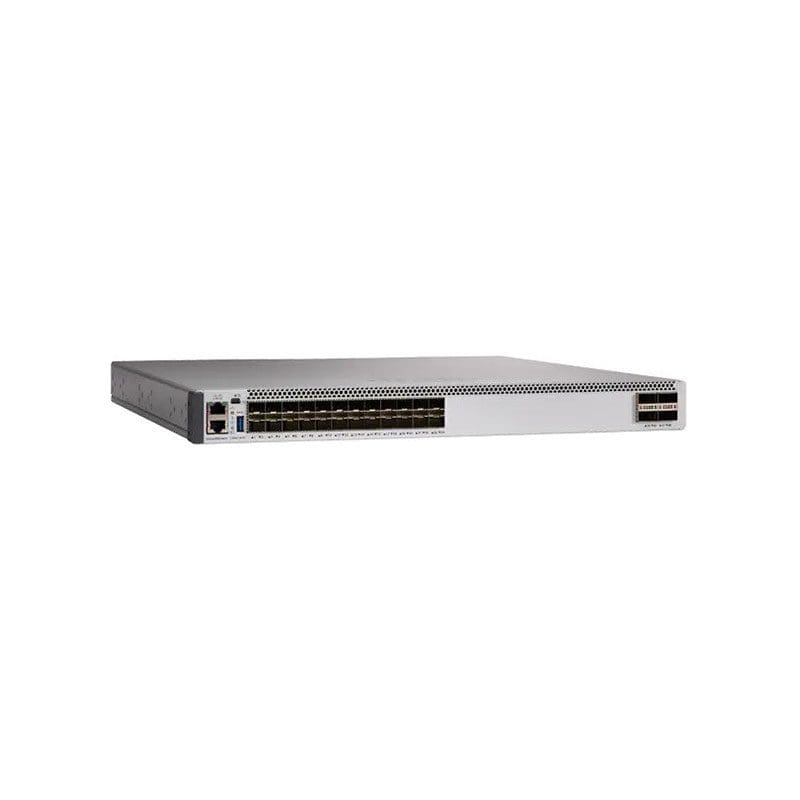

Cisco 9500 Network Switch 24 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :9500
Edition :Network Essentials
Packaged Quantity :1
Chassis
Built-in Devices :RFID tag
Processor
Installed Qty :1
Clock Speed :2.4 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :16 GB, 16 GB
Performance
Performance :Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
Capacity
Capacity :FNF entries: 512000, Host IPv4 routes: 80000, Host IPv6 routes: 40000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 16000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :24
Advanced Switching :Layer 3
Routing Protocol :IGMP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
MAC Address Table Size :64K entries
Jumbo Frame Support :9198 bytes
Manageable :Yes
Remote Management Protocol :NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Status Indicators :Status
Features :Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, IGMP snooping, Integrated Wireshark, IPv6 support, Layer 3 VPN (L3VPN) support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, NetFlow, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN), Syslog support, Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :16
Ports (2nd)
Qty :8
Type :10 Gigabit SFP+
Interface Provided
Interfaces :16 x 10GBase-T RJ-45, 8 x 10GBase-X SFP+
Software
Type :Cisco DNA Essential (5 years), Cisco IOS Universal
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :950 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Features :Front-to-rear air?ow
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :256-bit AES
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :21.5 inch
Height :1.7 inch
