C9500-24Q-E Technical Specifications

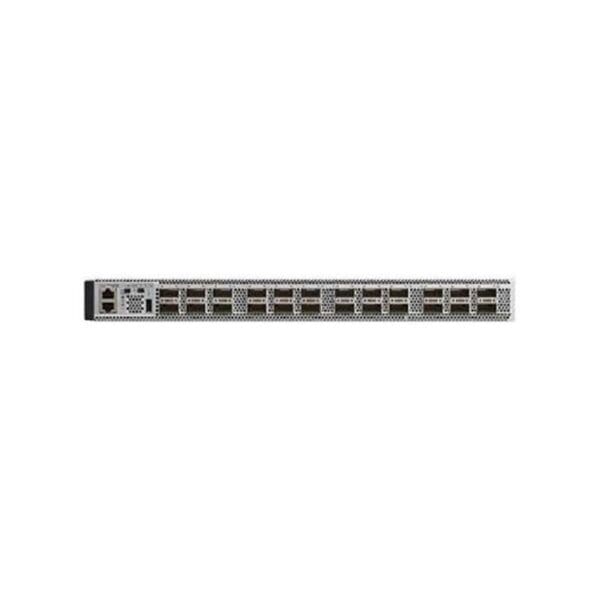

Cisco Catalyst 9500 24-port 40G switch, Network Essentials
General Information
Product Line Cisco Catalyst
Product Series C9500
Manufacturer Cisco Systems, Inc
Brand Name Cisco
Product Description Cisco Catalyst 9500 – Network Essentials – switch – 24 ports – managed – rack-mountable
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 24 x 40 Gigabit SFP
Power Over Ethernet (PoE) UPOE
Performance Switching capacity (full duplex): 960 Gbps ¦ Forwarding rate: 1440 Mpps
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
Power AC 120/230 V (50 – 60 Hz)
Power Redundancy Optional
