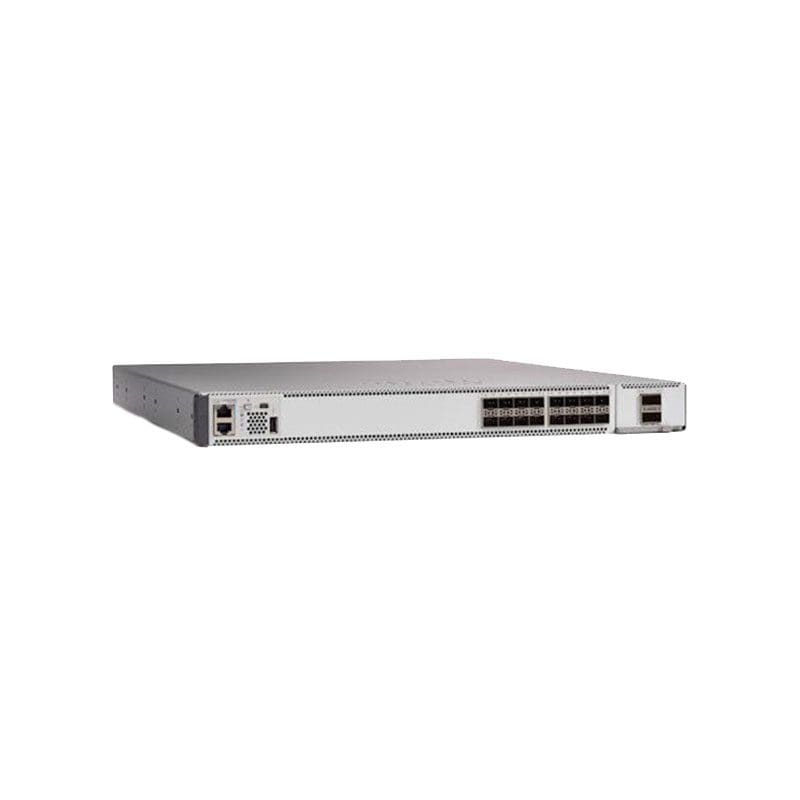

C9500-16X-A Technical Specifications
Catalyst 9500 16-port 10Gig switch, Network Advantage
Capacity
Type :FNF entries
Value :512000
Type :Host IPv4 routes
Value :80000
Type :Host IPv6 routes
Value :40000
Type :Indirect IPv4 routes
Value :64000
Type :Indirect IPv6 routes
Value :32000
Type :Multicast scale
Value :16000
Type :QoS ACL scale
Value :18000
Type :Security ACL scale
Type :Switched virtual interfaces (SVIs)
Type :VLAN IDs
Value :4000
Dimensions & Weight
Depth :17.5 in
Height :21.5 in
Weight :23.59 lbs
Width :1.7 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Max Storage Temperature :149 °F
Min Operating Temperature :32 °F
Min Storage Temperature :-4 °F
Flash Memory
Installed Size :16 GB
