C9500-16X-1A Technical Specifications

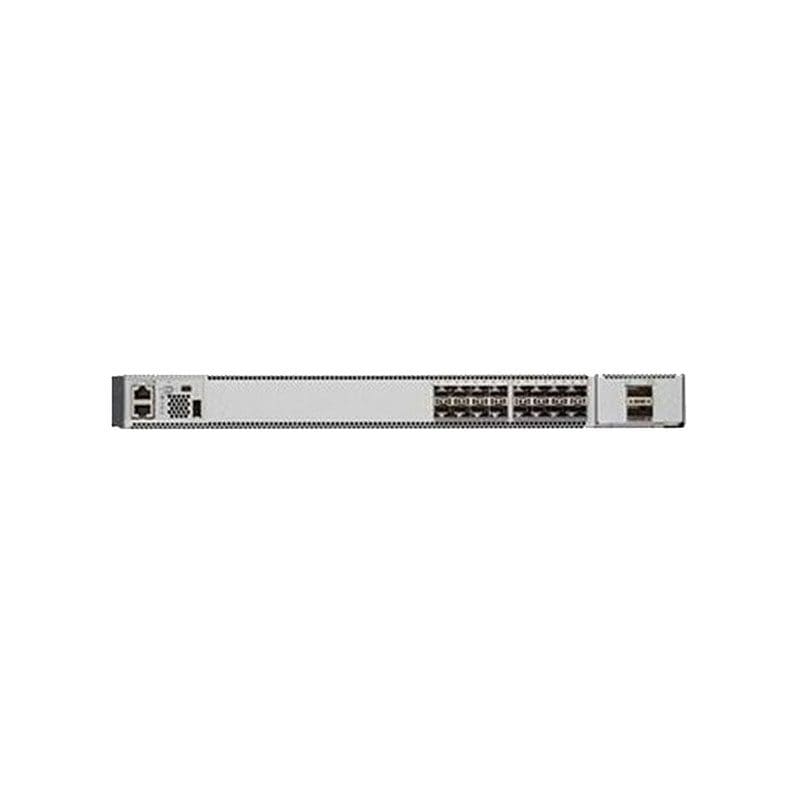

Cisco Catalyst 9500 Network Advantage Switch 16 Port Managed
Cabinet
Chassis Built-in Devices : RFID tag
Capacity
Type : FNF entries
Value : 512000
Type : Host IPv4 routes
Value : 80000
Type : Host IPv6 routes
Value : 40000
Type : Indirect IPv4 routes
Value : 64000
Type : Indirect IPv6 routes
Value : 32000
Type : Multicast scale
Value : 16000
Type : QoS ACL scale
Value : 18000
Type : Security ACL scale
Type : Switched virtual interfaces (SVIs)
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 17.5 in
Height : 21.5 in
Weight : 23.59 lbs
Width : 1.7 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 149 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -4 °F
