C9300L-24T-4X-E Technical Specifications

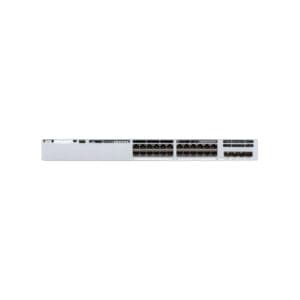

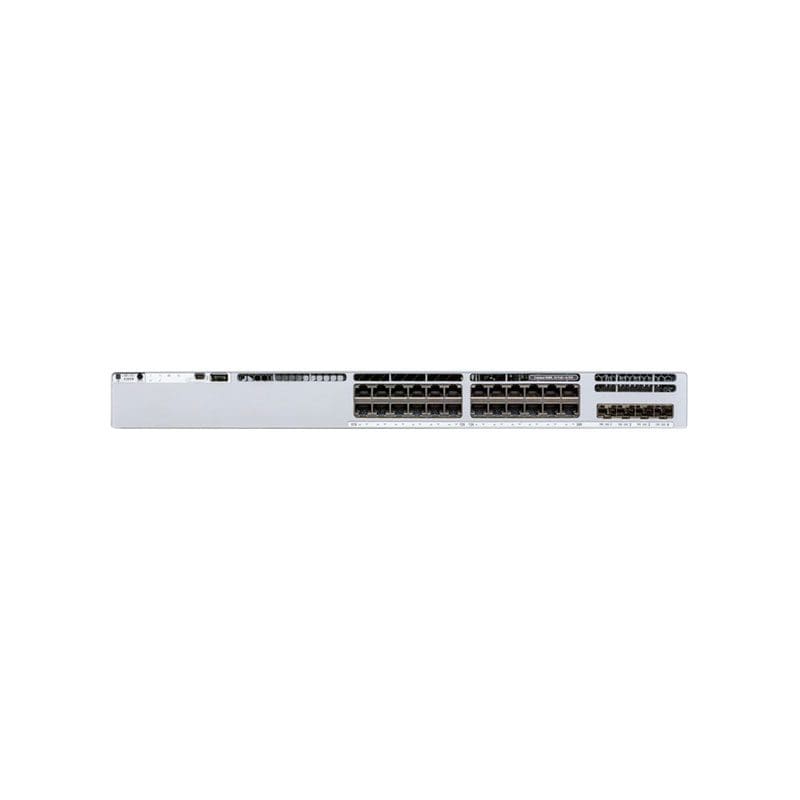

Cisco Catalyst 9300L Network Essentials switch 24 port
Capacity
Type :ACL scale entries
Type :IPv4 routes
Value :32000
Type :IPv6 routes
Value :16000
Type :Multicast scale
Value :8000
Type :QoS scale entries
Value :5120
Type :Routed ports
Value :416
Type :Switched virtual interfaces (SVIs)
Value :1000
Type :VLANs supported
Value :4094
Dimensions & Weight
Depth :1.7 in
Height :16.1 in
Weight :14.95 lbs
Width :17.5 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 90% (non-condensing)
Max Storage Temperature :158 °F
Min Storage Temperature :-40 °F
Flash Memory
Installed Size :16 GB
Header
Brand :Cisco
Edition :Network Essentials
Manufacturer :CISCO DS HARDWARE DIRECT
Model :9300L
Product Line :Cisco Catalyst
