C9300-48UXM-1E Technical Specifications

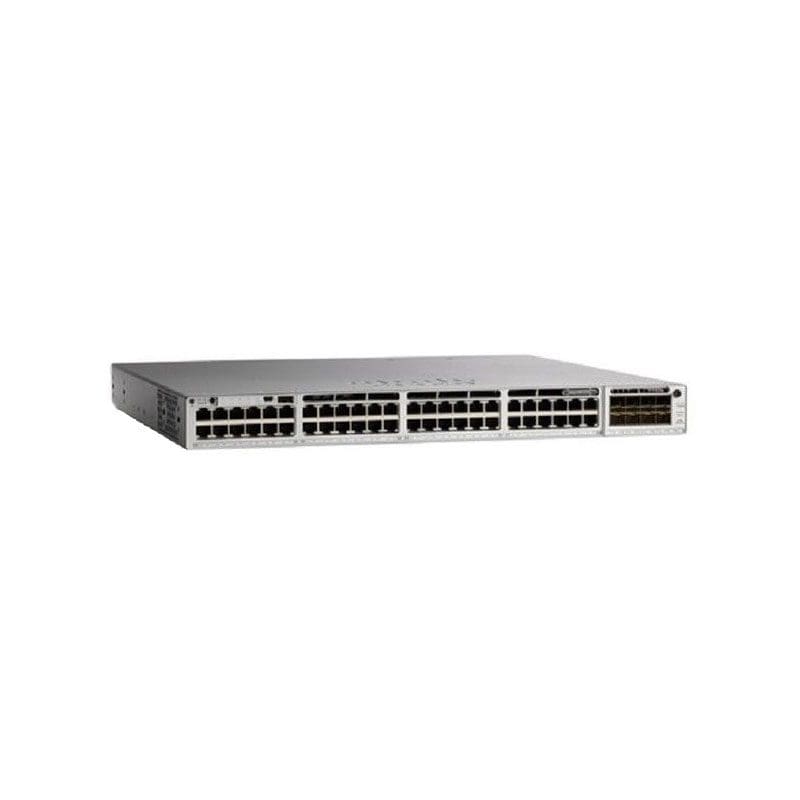

Cisco Catalyst 9300 Network Essentials Switch 48 Port Managed
Capacity
Type : Flexible NetFlow entries
Value : 64000
Type : IPv4 routing table entries
Value : 32000
Type : IPv6 routing table entries
Value : 16000
Type : Packet buffer size
Value : 32 MB
Type : Switched virtual interfaces (SVIs)
Value : 2000
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 22.2 in
Height : 1.7 in
Weight : 20.59 lbs
Width : 17.5 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 90% (non-condensing)
Max Operating Temperature : 113 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 23 °F
Min Storage Temperature : -40 °F
Flash Memory
Installed Size : 16 GB
Header
Brand : Cisco
Edition : Network Essentials
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 9300
Packaged Quantity : 1
Product Line : Cisco Catalyst
Interface Provided
Comments : UPOE
