Refurbished C9300-48UN-A Technical Specification

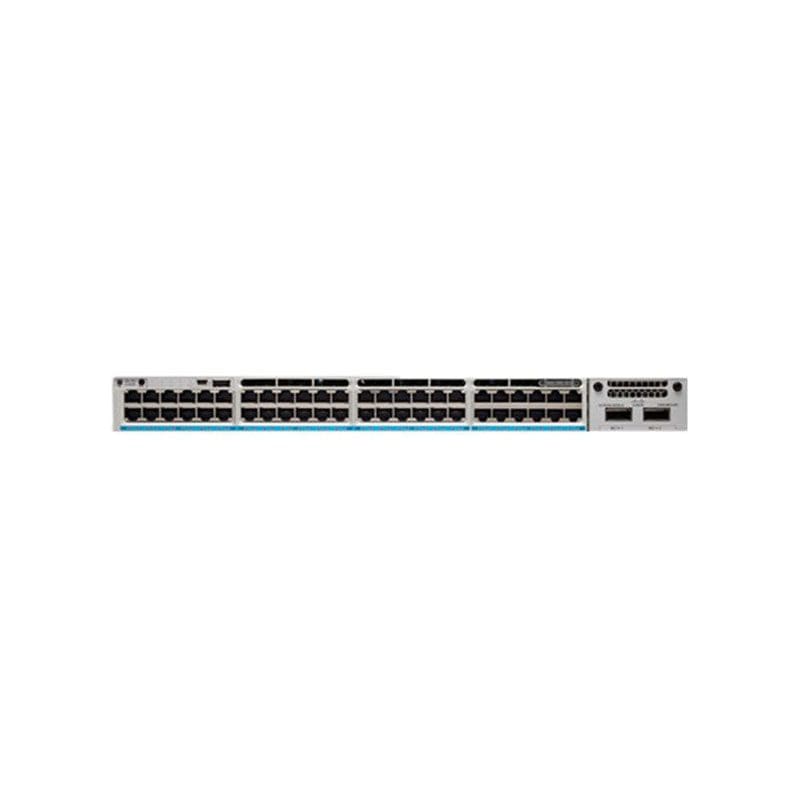

Cisco Catalyst C9300-48UN Ethernet Switch
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C9300-48UN-A-RF
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Catalyst
Product Series 9300
Product Model C9300-48UN
Product Name Catalyst C9300-48UN Ethernet Switch
Product Condition Refurbished
Product Type Ethernet Switch
Technical Information−
Interfaces/Ports
Total Number of Network Ports 48
Uplink Port Yes
Modular Yes
Stack Port Yes
Port/Expansion Slot Details 48 x 5 Gigabit Ethernet UPoE, 1 x Uplink
Media & Performance
Media Type Supported Twisted Pair, Optical Fiber
Ethernet Technology 5 Gigabit Ethernet
Network Technology 5GBase-T, 1000Base-X
I/O Expansions
Number of Total Expansion Slots 1
Expansion Slot Type Uplink Module
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Power Description
PoE (RJ-45) Port Yes
PoE Budget 645 W
Input Voltage 120 V AC, 230 V AC
Frequency 50 Hz, 60 Hz
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type IEC 60320 C16, IEC 60320 C14, C15
Physical Characteristics
Height 1.7″
Width 17.5″
Depth 22.2″
Weight (Approximate) 20.04 lb
