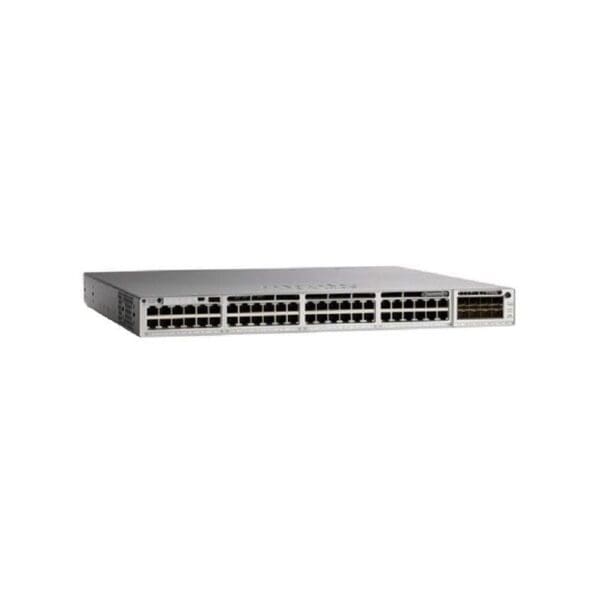

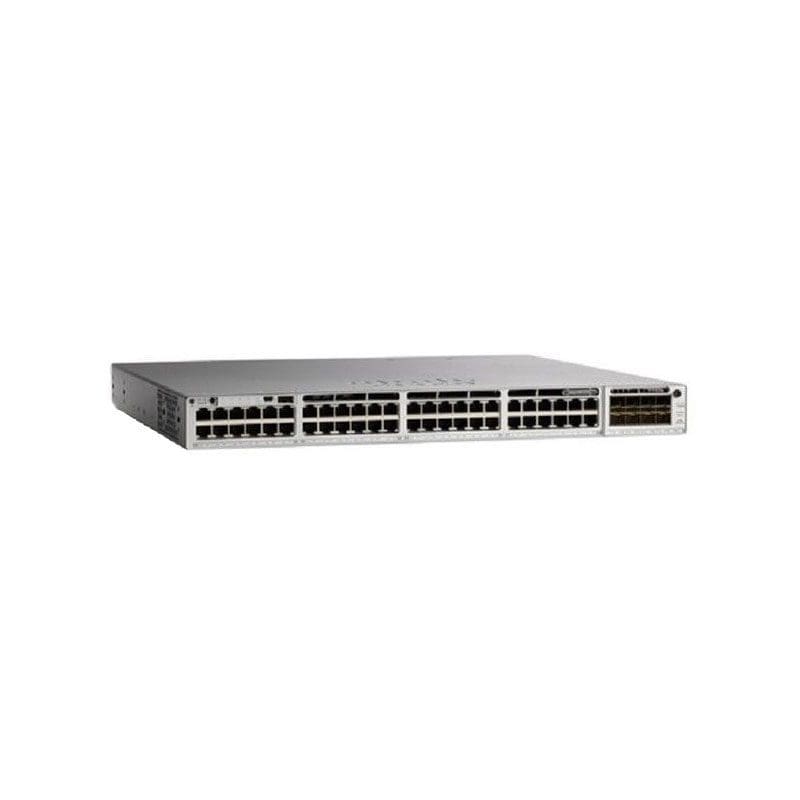

Refurbished C9300-48U-1E Technical Specification
Cisco Catalyst 9300 Network Essentials Switch
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :9300
Edition :Network Essentials
Packaged Quantity :1
RAM
Installed Size :8 GB
Flash Memory
Installed Size :16 GB, 16 GB
Performance
Performance :Forwarding rate: 190.48 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Capacity
Capacity :Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Packet buffer size: 16 MB, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :IGMP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
MAC Address Table Size :32000 entries
Jumbo Frame Support :9198 bytes
Manageable :Yes
Remote Management Protocol :CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Power Over Ethernet (PoE) :UPOE
PoE Budget :822 watt
Status Indicators :Status
Features :3 fans, 802.1x authentication, Access Control List (ACL) support, Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), Flexible NetFlow (FNF), FTP client, Full duplex mode, Integrated Wireshark, Management Information Base (MIB), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Trunking, VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ports
Qty :48
Type :10/100/1000 (UPOE)
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0, 48 x 1000Base-T RJ-45 UPOE
Software
