C9300-48P-EDU Technical Specifications

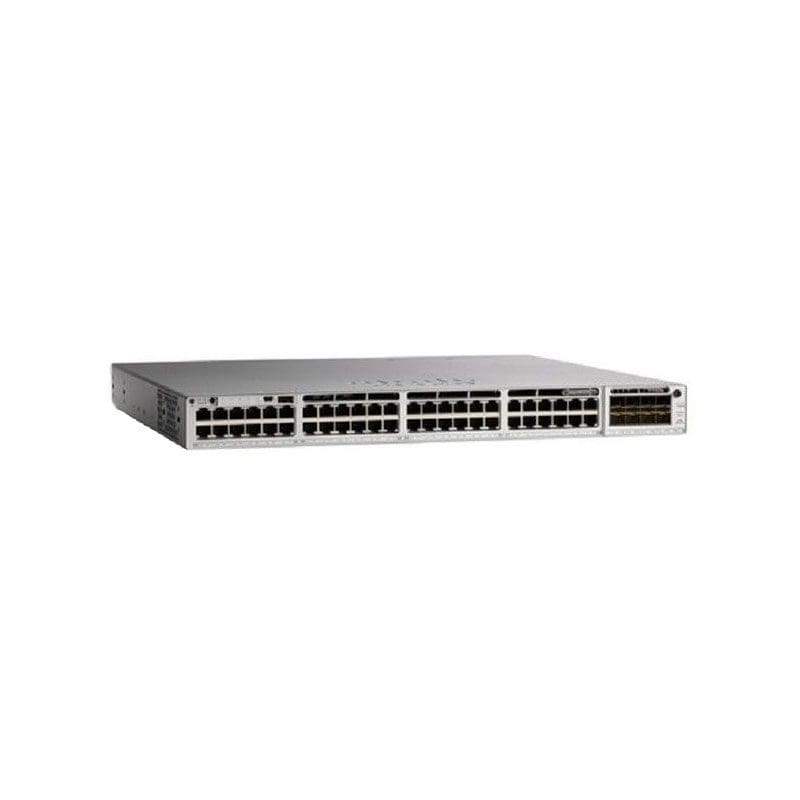

Cisco Catalyst 9300 Switch 48 Port Managed Rack Mountable
Capacity
Type : Flexible NetFlow entries
Value : 64000
Type : IPv4 routing table entries
Value : 32000
Type : IPv6 routing table entries
Value : 16000
Type : Switched virtual interfaces (SVIs)
Value : 2000
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 17.5 in
Height : 1.7 in
Weight : 16.73 lbs
Width : 17.5 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 90% (non-condensing)
Max Operating Temperature : 113 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 23 °F
Min Storage Temperature : -40 °F
Flash Memory
Installed Size : 16 GB
Header
Brand : Cisco
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 9300
Packaged Quantity : 1
Product Line : Cisco Catalyst
Interface Provided
Comments : PoE+
Connector Type : RJ-45
Qty : 48
Type : 1000Base-T
Qty : 1
Type : USB 2.0
