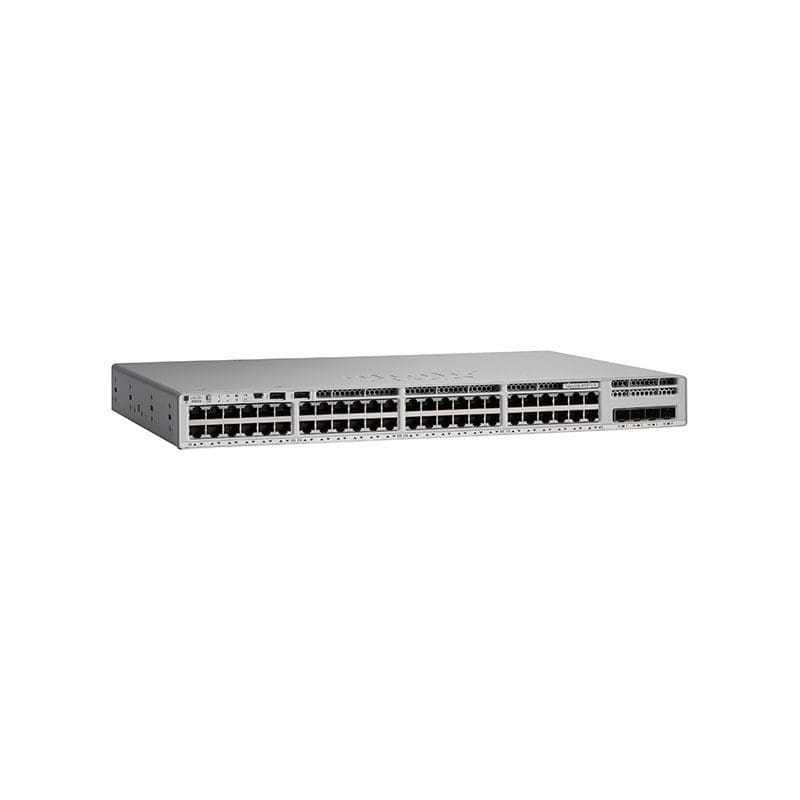

Refurbished C9200L-48PXG-2Y-E Technical Specifications
Cisco Catalyst 9200L Network Essentials switch 48 port
Capacity
Type :ACL scale entries
Type :FNF entries
Value :16000
Type :IPv4 routes
Value :11000
Type :IPv4 routing table entries
Value :3000
Type :IPv6 routing table entries
Value :1500
Type :Multicast scale
Value :1000
Type :Packet buffer size
Value :6 MB
Type :QoS hardware queues per port
Value :8
Type :Switched virtual interfaces (SVIs)
Value :512
Type :Virtual networks
Value :1
Type :VLANs supported
Value :1024
Dimensions & Weight
Depth :13.8 in
Height :1.7 in
Weight :12.59 lbs
Width :17.5 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 90% (non-condensing)
Max Operating Temperature :113 °F
Max Storage Temperature :158 °F
Min Operating Temperature :23 °F
Min Storage Temperature :-40 °F
Flash Memory
Installed Size :4 GB
Header
Brand :Cisco
Edition :Network Essentials
Manufacturer :CISCO DS HARDWARE DIRECT
Model :9200L
Packaged Quantity :1
Ethernet Technology: Gigabit Ethernet
Product Line :Cisco Catalyst
Interface Provided
Comments :PoE+
Qty :40
Type :1000Base-T
Comments :Uplink
Qty :2
Type :25GBase-X
Connector Type :RJ-45
Qty :8
Type :100/1000/2.5G/5G/10GBase-T
Qty :1
Type :Network stack device
Type :Console
Type :Management (LAN)
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
Encryption Algorithm :128-bit AES
MTBF :337,260 hours
Networking
Advanced Switching :Layer 3
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features :ARP support, Cisco StackWise-80 technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN)
Form Factor :Rack-mountable
Jumbo Frame Support :9198 bytes
MAC Address Table Size :16000 entries
Manageable :Yes
PoE Budget :740 W
Ports Qty :48
Power Over Ethernet (PoE) :PoE+
Remote Management Protocol :CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol :EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Stackable :Stackable
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Type :Switch
Performance
Type :Forwarding rate
Value :252.97 Mpps
Type :Stacking bandwidth
Value :80 Gbps
Type :Switching capacity
Value :340 Gbps
Type :Switching capacity with stacking
Value :420 Gbps
Ports
Qty :8
Type :100/1000/2.5G/5G/10GBase-T
Ports (2nd)
Qty :40
Type :10/100/1000 (PoE+)
Ports (3rd)
Qty :2
Type :25 Gigabit Ethernet
Power Device
Frequency Required :50 – 60 Hz
Hot-Plug :Hot-plug
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1000 Watt
Power Redundancy :Optional
Type :Internal power supply
RAM
Installed Size :2 GB
