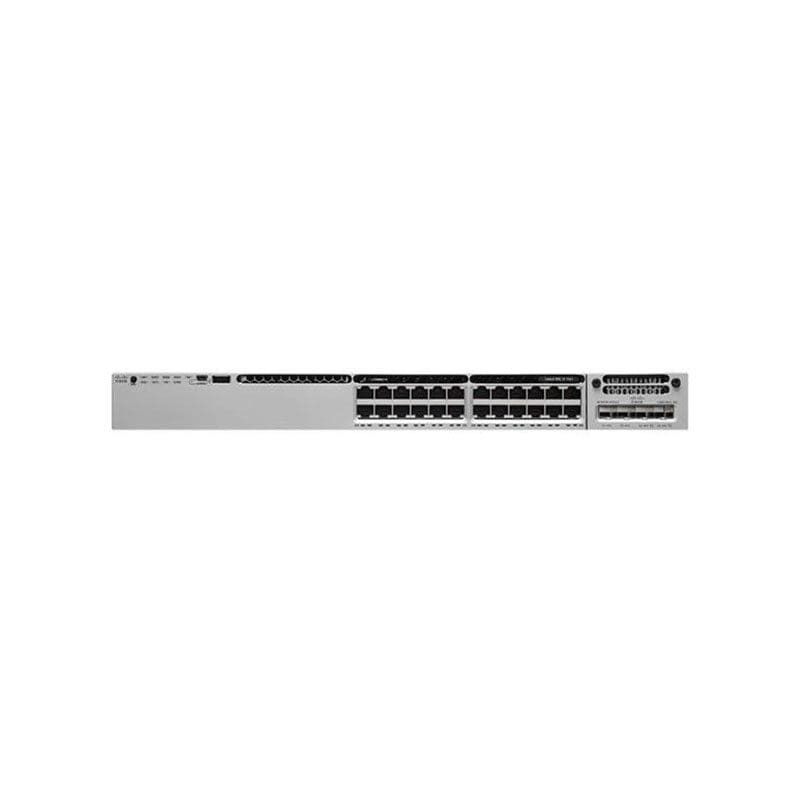

Refurbished C9200-24P-E Technical Specification
Cisco Catalyst 9200 Network Essentials Switch
General
Device Type Switch – 24 ports – L3 – smart – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
Performance Stacking bandwidth: 160 Gbps | Switching bandwidth: 128 Gbps | Forwarding rate: 190.4 Mpps
Capacity Virtual networks: 4 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | ACL scale entries: 1600 | Packet buffer size: 6 MB | VLAN IDs: 4096 | Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol NETCONF, RESTCONF
Encryption Algorithm 128-bit AES
Features Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
RAM 4 GB
Flash Memory 4 GB
Built-in Devices RFID tag
Expansion / Connectivity
Interfaces 24 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (max)
Power Redundancy Optional
Voltage Required AC 100-240 V (50 – 60 Hz)
Miscellaneous
MTBF 422,310 hours
Compliant Standards Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
Software Included Cisco Network Essentials
Dimensions & Weight
Width 1.7 in
Depth 17.5 in
Height 13.8 in
Weight 12.13 lbs
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 90% (non-condensing)
