Refurbished C897VAW-E-K9 Technical Specification

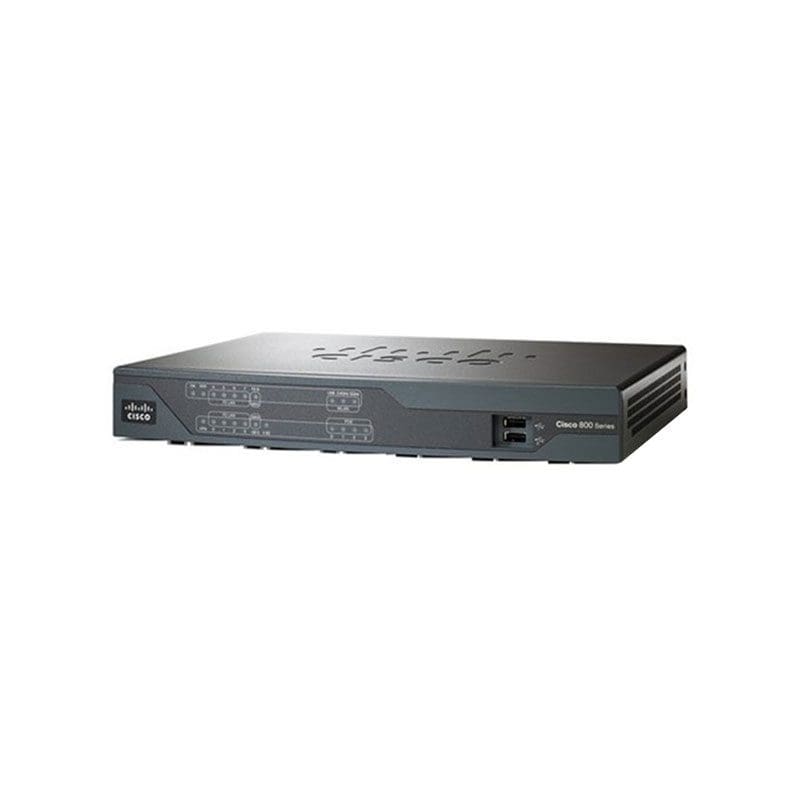

Cisco 897VA Gigabit Ethernet Security Router
General
Device Type Wireless router – 8-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Frequency Band 2.4 GHz / 5 GHz
Network / Transport Protocol L2TP, RSVP, IPSec, FTP, DHCP, DNS, L2TPv3
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm LEAP, Triple DES, MD5, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, PKI, 128-bit AES, 192-bit AES, 256-bit AES, WEP
Authentication Method RADIUS, TACACS+, Extensible Authentication Protocol (EAP), EAP-FAST
Features Firewall protection, auto-sensing per device, DHCP support, NAT support, MDI/MDI-X switch, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), MIMO technology, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, CleanAir technology, Bidirectional Forwarding Detection (BFD), DHCP relay, 2T3R MIMO technology, DHCP client, Hot Standby Router Protocol (HSRP) support, Ingress Layer 2 MAC Access Control Lists (ACLs), Call Admission Control (CAC), Flexible NetFlow (FNF)
Compliant Standards IEEE 802.1D, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n (draft 2.0), CISPR 24, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AES, FCC CFR47 Part 15, VCCI V-3, ICES-003 issue 4 Class B, ICES-003 issue 4 Class A
RAM 512 MB (installed) / 1 GB (max)
Flash Memory 256 MB (installed) / 256 MB (max)
Status Indicators Port status, power
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x SFP (mini-GBIC)
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Antenna
Antenna External detachable
Antenna Qty 3
Directivity Omni-directional
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
