Refurbished C896VA-K9 Technical Specification

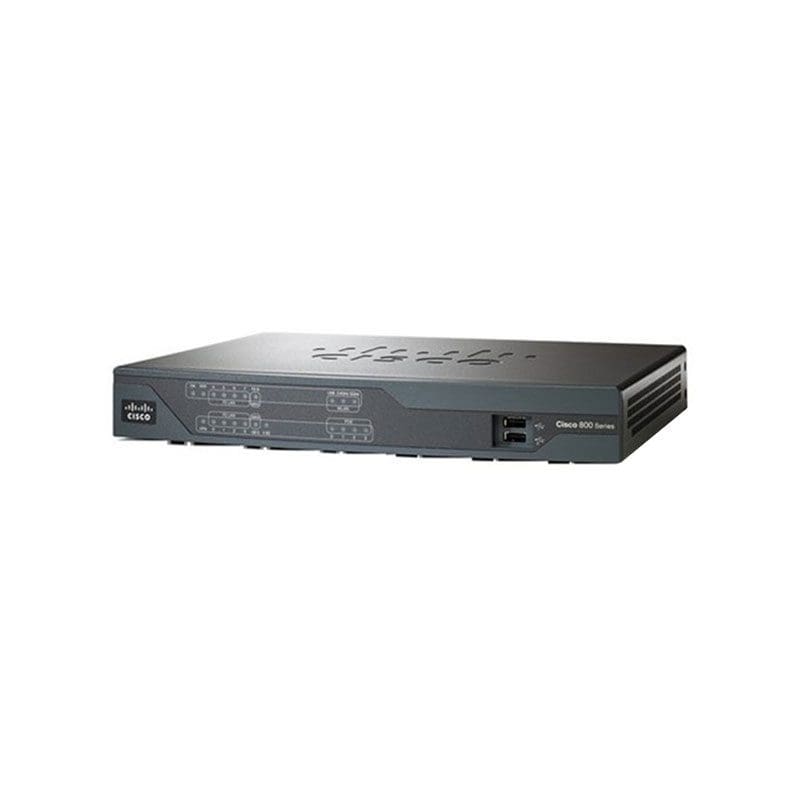

Cisco 896VA Gigabit Ethernet Security Router
General
Device Type Router – 8-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity IPSec VPN tunnels: 50
Network / Transport Protocol L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features Firewall protection, NAT support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), RADIUS support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP client, Virtual Routing and Forwarding (VRF), Class of Service (CoS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AES, FCC CFR47 Part 15, VCCI V-3
RAM 512 MB (installed) / 1 GB (max)
Flash Memory 256 MB (installed) / 256 MB (max)
Status Indicators Port status, power, PoE
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x VDSL / ADSL2+ ¦ Management: 1 x console – RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x 1000Base-T – RJ-45 ¦ WAN: 1 x ISDN
Expansion Slots 1 (total) / 1 (free) x memory
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
