Refurbished C891FW-A-K9 Technical Specification

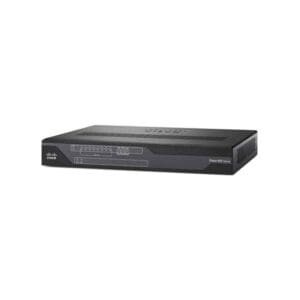

Cisco 891FW Wireless Router ISDN/Mdm
General
Device Type Wireless router – 8-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz / 5 GHz
Capacity Connection / user qty: 50
Network / Transport Protocol L2TP, RSVP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, SSH, CLI
Encryption Algorithm LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features NAT support, power over Ethernet (PoE), VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, CleanAir technology, Bidirectional Forwarding Detection (BFD), fanless, Virtual Routing and Forwarding (VRF), Class of Service (CoS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, EN 300 386
RAM 1 GB (installed) / 1 GB (max)
Flash Memory 256 MB (installed) / 256 MB (max)
Status Indicators Port status, power
Expansion / Connectivity
Interfaces LAN: 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x 10Base-T/100Base-TX – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x modem ¦ 1 x BRI
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
