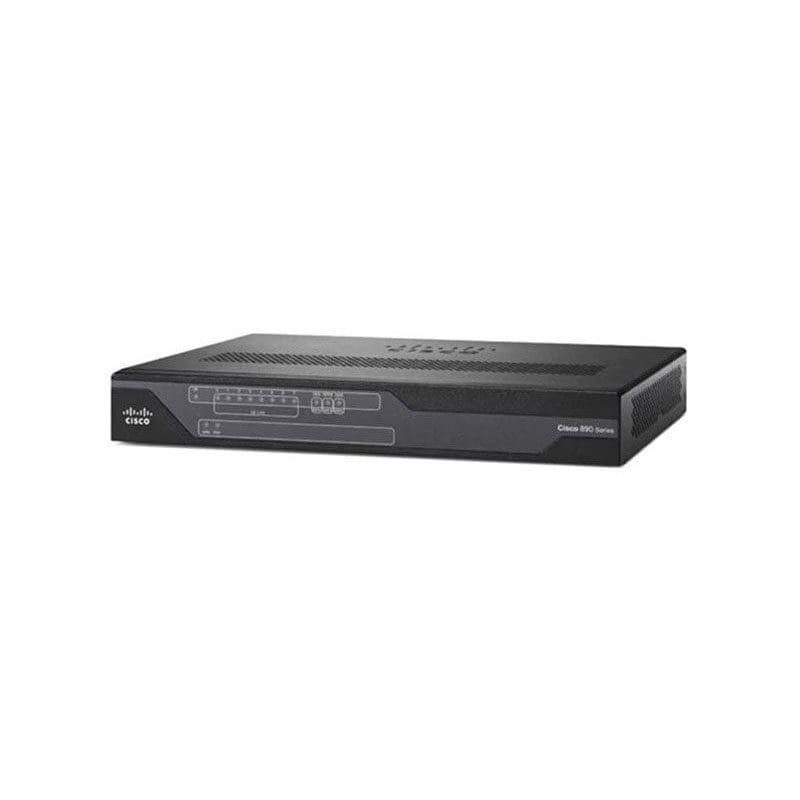

Refurbished C891F-K9 Technical Specification
Cisco 891F Router ISDN/Mdm Desktop
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :891F
Packaged Quantity :1
RAM
Installed Size :512 megabyte
Max Supported Size :1 GB
Flash Memory
Installed Size :256 megabyte, 256 megabyte
Modem
Type :ISDN / analog modem combo
Protocols & Specifications :ITU V.92
Capacity
Capacity :IPSec VPN tunnels: 50
Networking
Type :Router
Form Factor :Desktop, Rack-mountable
Connectivity Technology :Wired
Integrated Switch :8-port switch
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :BGP, BGP-4+, Bidirectional Forwarding Detection (BFD), EIGRP, GRE, HSRP, NHRP, OSPF, OSPFv3, Policy-based routing (PBR), RIP-1, RIP-2, VRRP, WCCP
Network / Transport Protocol :DDNS, DHCP, DNS, FTP, ICMP/IP, IPSec, L2TP, L2TPv3, RSVP, RTP
Remote Management Protocol :CLI, HTTP, HTTPS, SNMP 3, SSH, Telnet
Key Features :Firewall, USB port, VPN support
Features :Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, DNS proxy, Dynamic DNS server, Dynamic Multipoint VPN (DMVPN), Fanless, Firewall protection, Flexible NetFlow (FNF), High Availability, IGMP snooping, Intrusion Prevention System (IPS), IPv6 support, Link Fragmentation and Interleaving (LFI), Low-latency queuing (LLQ), MAC address filtering, NAT support, Power over Ethernet (PoE), Quality of Service (QoS), Security lock slot (cable lock sold separately), Spanning Tree Protocol (STP) support, Storm Control, Traffic shaping, Virtual Route Forwarding-Lite (VRF-Lite), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Interface Provided
Interfaces :LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE) – RJ-45, Management: 1 x console – RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX – RJ-45, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x BRI ST, WAN: 1 x modem – RJ-11, WAN: 1 x SFP (mini-GBIC)
OS Provided
Type :Cisco IOS Advanced IP services
Power Device
Type :External power adapter
Power Provided :60 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
