Refurbished C891-24X/K9 Technical Specification

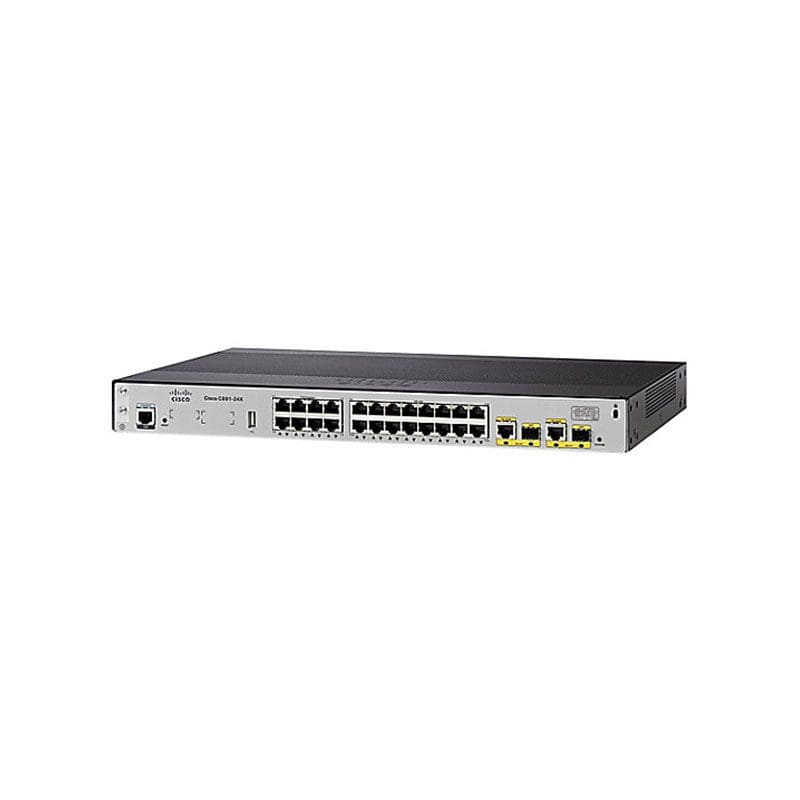

Cisco 891-24X Router Desktop Rack-Mountable
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :891-24X
Packaged Quantity :1
RAM
Installed Size :1 GB
Flash Memory
Installed Size :256 megabyte, 256 megabyte
Capacity
Capacity :IPSec VPN tunnels: 50
Networking
Type :Router
Form Factor :Desktop, Rack-mountable
Connectivity Technology :Wired
WAN Ports Qty :2
Integrated Switch :24-port switch
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :BGP, BGP-4+, Bidirectional Forwarding Detection (BFD), EIGRP, GRE, HSRP, NHRP, OSPF, OSPFv3, Policy-based routing (PBR), RIP-1, RIP-2, VRRP, WCCP
Network / Transport Protocol :DDNS, DHCP, DNS, FTP, ICMP/IP, IPSec, L2TP, L2TPv3, RSVP, RTP
Remote Management Protocol :CLI, HTTP, HTTPS, SNMP 3, SSH, Telnet
Key Features :Firewall, USB port, VPN support
Features :Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, DNS proxy, Dynamic DNS server, Dynamic Multipoint VPN (DMVPN), Fanless, Firewall protection, Flexible NetFlow (FNF), High Availability, IGMP snooping, Intrusion Prevention System (IPS), IPv6 support, Link Fragmentation and Interleaving (LFI), Low-latency queuing (LLQ), MAC address filtering, NAT support, Power over Ethernet (PoE), Quality of Service (QoS), Security lock slot (cable lock sold separately), Spanning Tree Protocol (STP) support, Storm Control, Traffic shaping, Virtual Route Forwarding-Lite (VRF-Lite), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Interface Provided
Interfaces :LAN: 16 x 10Base-T/100Base-TX/1000Base-T – RJ-45, LAN: 8 x 10Base-T/100Base-TX/1000Base-T (PoE) – RJ-45, Management: 1 x console – RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 2 x SFP (mini-GBIC)
OS Provided
Type :Cisco IOS Advanced IP services
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :128-bit AES, 192-bit AES, 256-bit AES, DES, PKI, SSL, Triple DES
Authentication Method :RADIUS, TACACS+
Compliant Standards :CISPR 22, CISPR 24, EN 300386, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022, EN55024, ICES-003, KN22
Dimensions & Weight
Width :17.2 inch
Depth :9.8 inch
Height :1.8 inch
Weight :5.51 lbs
