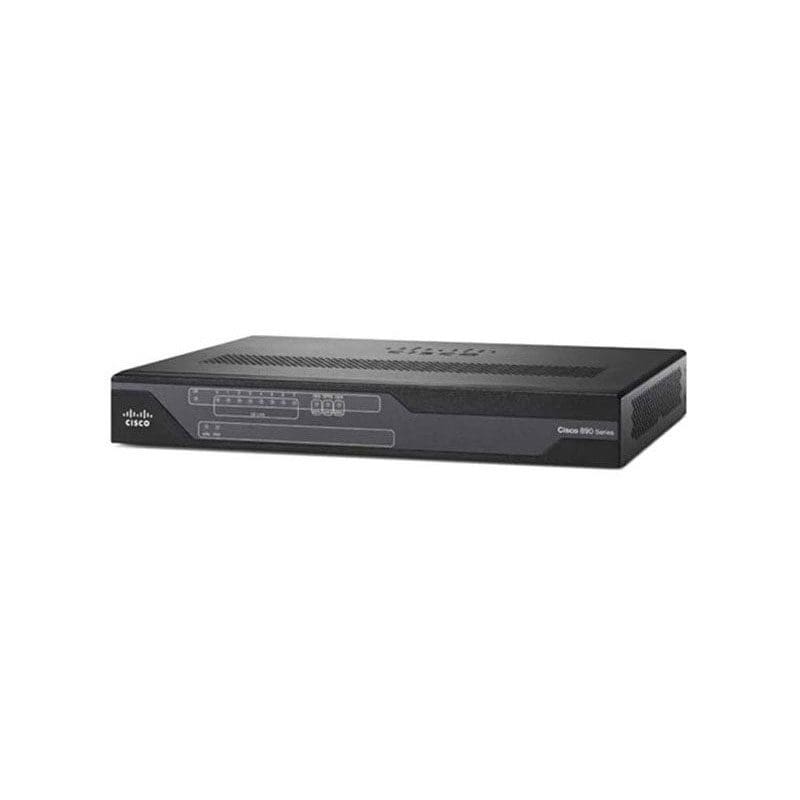

Refurbished C887VAM-W-E-K9 Technical Specification
Cisco Annex M ETSI Wireless Router
General
Device Type Wireless router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Frequency Band 2.4 GHz
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol L2TP, IPSec, PPPoE, PPPoA, DHCP, DNS
Routing Protocol RIP-1, RIP-2, HSRP, VRRP, GRE, policy-based routing (PBR)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm LEAP, DES, Triple DES, MD5, SSL, TLS, PEAP, TTLS, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, Radio Service Set ID (SSID), TACACS+, Extensible Authentication Protocol (EAP), EAP-FAST
Features Firewall protection, DHCP support, NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), MIMO technology, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0), ETSI, VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1
RAM 256 MB (installed) / 768 MB (max) – DDR2 SDRAM – SO-DIMM 200-pin
Flash Memory 128 MB
Status Indicators Port status, power
Line Properties
Framing Format ANSI T1.413
Communications
Type DSL modem
Digital Signaling Protocol ADSL2, ADSL2+, VDSL2
Protocols & Specifications ITU G.994.1 (G.hs), ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M
Expansion / Connectivity
Interfaces LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2
Expansion Slots 1 (total) / 1 (free) x SO-DIMM 200-pin
Antenna
Antenna External detachable
Antenna Qty 3
Directivity Omni-directional
Gain Level 2 dBi
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced Security
Dimensions & Weight
Width 12.8 in
Depth 10.4 in
Height 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85% (non-condensing)
