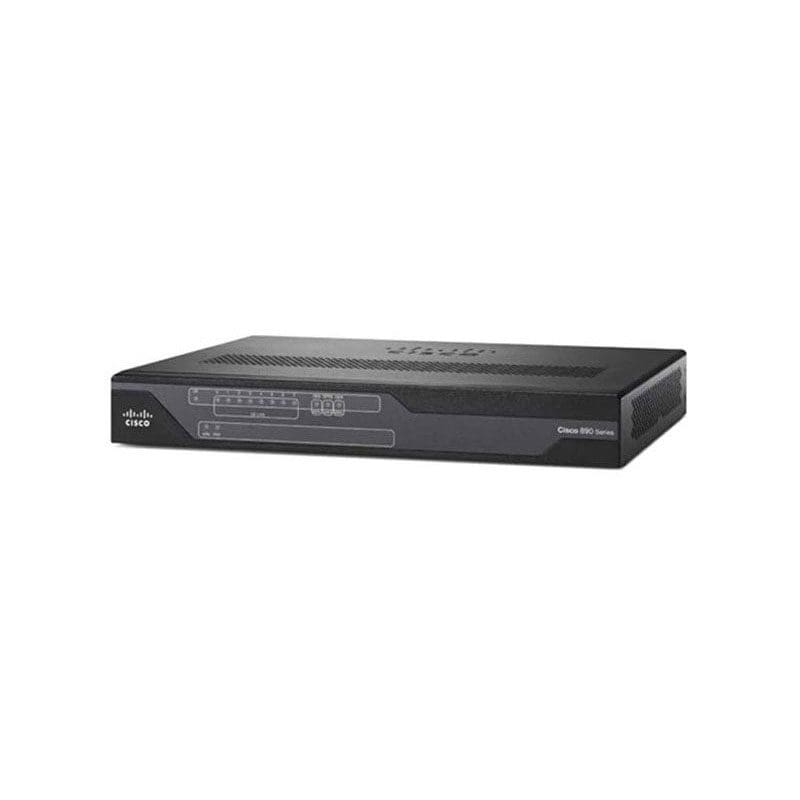

Refurbished C886VA-W-E-K9 Technical Specification
Cisco VDSL2/ADSL2+ OVER ISDN
General
Device Type Wireless router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Frequency Band 2.4 GHz
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol L2TP, ICMP/IP, IPSec, PPPoE, PPPoA, DHCP, DNS
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, static IPv4 routing, static IPv6 routing
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH
Encryption Algorithm LEAP, DES, Triple DES, MD5, SSL, TLS, PEAP, TTLS, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, Radio Service Set ID (SSID), TACACS+, Extensible Authentication Protocol (EAP), EAP-FAST
Features Firewall protection, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), MIMO technology, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, DNS proxy
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0), ETSI, VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1
RAM 256 MB (installed) / 768 MB (max) – DDR2 SDRAM – SO-DIMM 200-pin
Flash Memory 128 MB
Status Indicators Port status, power
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x ADSL2+ over ISDN ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x BRI ST
Expansion Slots 1 (total) / 1 (free) x SO-DIMM 200-pin
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Antenna
Antenna External detachable
Antenna Qty 3
Directivity Omni-directional
Gain Level 2 dBi
Software / System Requirements
OS Provided Cisco IOS Advanced Security
