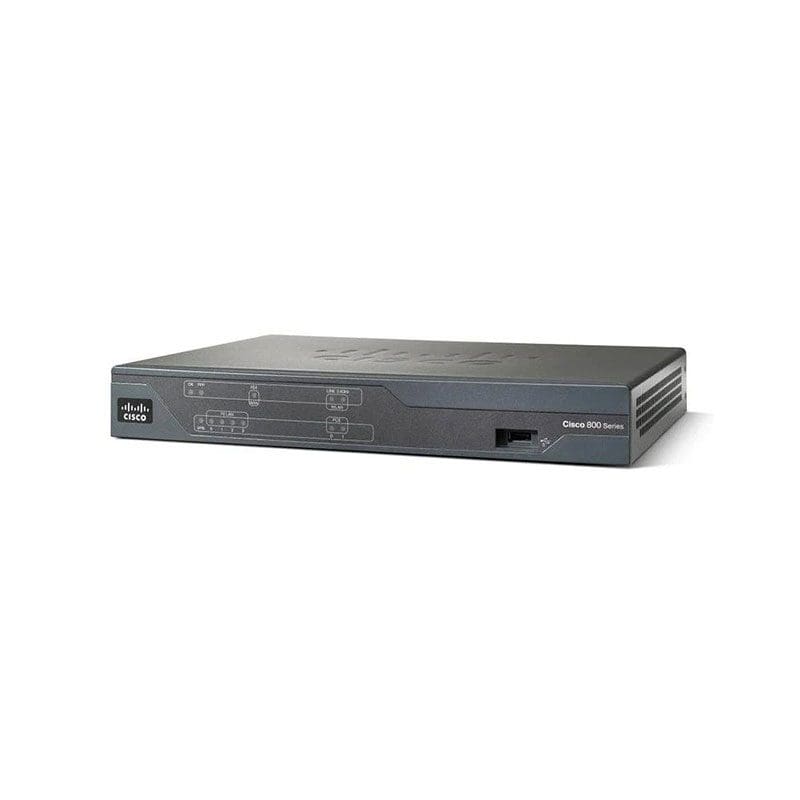

Refurbished C881-V-K9 Technical Specification
Cisco 881 FE WAN 4FXS 2BRI 1FXO
General
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol L2TP, IPSec
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH
Encryption Algorithm LEAP, DES, Triple DES, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), DiffServ support, MAC address filtering, Intrusion Prevention System (IPS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy, Bidirectional Forwarding Detection (BFD), Virtual Routing and Forwarding (VRF)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, EN 300 386
RAM 256 MB (installed) / 768 MB (max) – DDR2 SDRAM – SO-DIMM 200-pin
Flash Memory 128 MB (installed) / 128 MB (max)
Status Indicators Port status, power
Expansion / Connectivity
Interfaces LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX – RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ Phone line: 4 x FXS ¦ Phone line: 1 x FXO ¦ 2 x BRI
Expansion Slots 1 (total) / 1 (free) x SO-DIMM 200-pin
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
Software Included Cisco Configuration Professional Express
