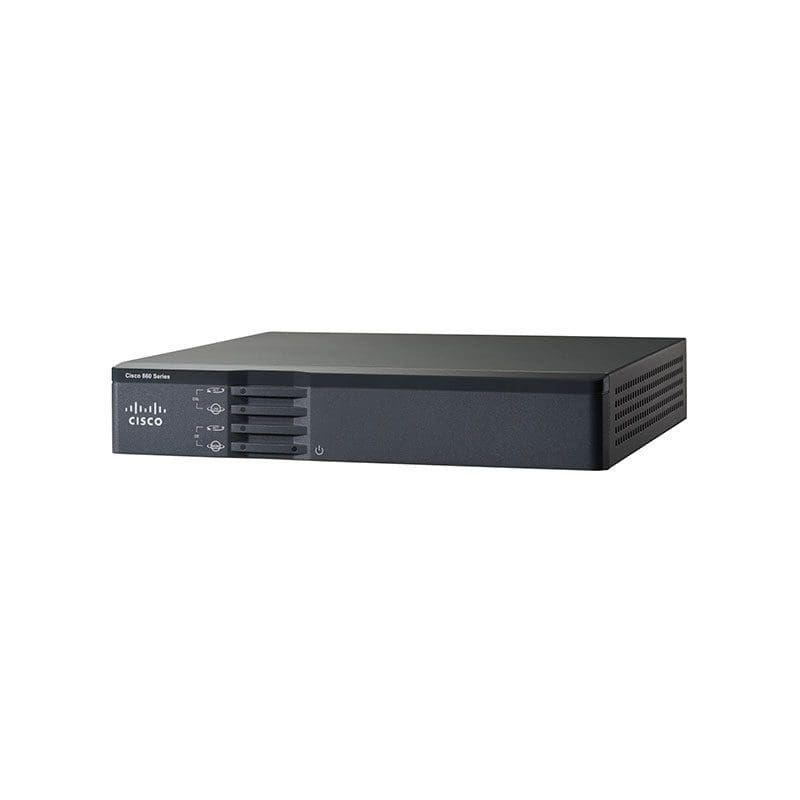

Refurbished C867VAE-K9 Technical Specification
Cisco Router DSL Modem
General
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop, rack-mountable – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity IPSec VPN tunnels: 10
Network / Transport Protocol IPSec, PPPoE, PPPoA, DHCP, DNS
Routing Protocol RIP-1, RIP-2
Remote Management Protocol SNMP 3, HTTP, HTTPS, SSH
Features Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), DHCP server, DNS proxy, DHCP relay, Web Services Management Agent (WSMA), NetFlow, DHCP client
Compliant Standards IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3
RAM 256 MB (installed) / 256 MB (max)
Flash Memory 64 MB
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
