C8300-2N2S-4T2X Technical Specifications

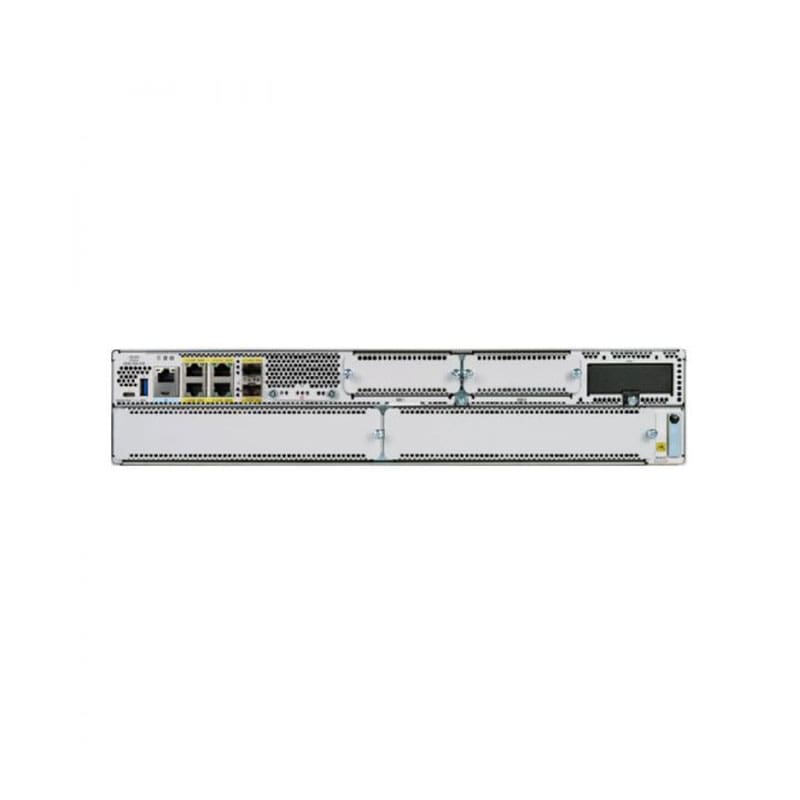

Cisco Catalyst 8300-2N2S-4T2X 6 Ports Data Link Protocol 10 Gigabit Ethernet Router Institute of Electrical and Electronics Engineers (IEEE) 802.1ag, 802.3ah, 802.1Q – 2U Rack-mountable
Manufacturer: Cisco
Model Number or SKU# C8300-2N2S-4T2X
Product Type: Ethernet Router
Key Features of Router
Device Type: Router
Enclosure Type: Rack-mountable (2U)
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet
Performance
VPN Throughput (IMIX IPsec): 5 Gbps
VPN Throughput (1400 B IPsec): 18 Gbps
IPv4 Forwarding Throughput (1400-byte Packet Size): 19.7 Gbps
Capacity
Maximum Overlay Tunnels: 6000
ACL: 4000
Access Control Entries (ACEs) per System (IPv4): 72000
IPv4 Routes: 1600000
IPv6 Routes: 1500000
Queues: 16000
NAT Sessions: 1200000
Firewall Sessions: 512000
Virtual Routing and Forwarding (VRF) Entries: 4000
