Refurbished C819HGW-V-A-K9 Technical Specification

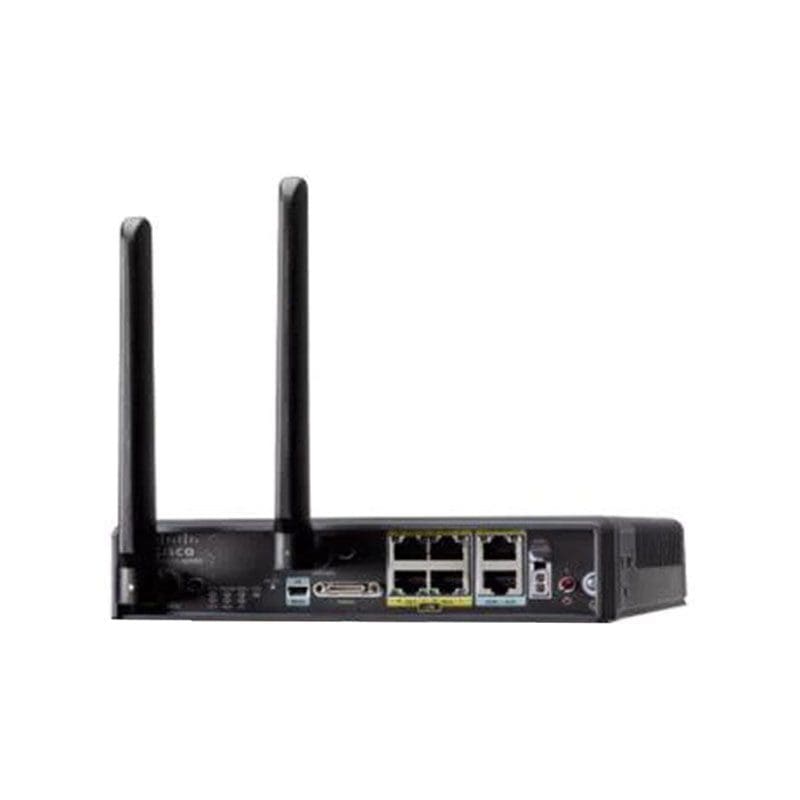

Cisco 819 Secure Hardened Router
General
Device Type Wireless router – 4-port switch (integrated)
Service Provider Verizon Wireless
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz / 5 GHz
Capacity Connection / user qty: 20
Network / Transport Protocol L2TP, IPSec, DHCP, L2TPv3, DDNS
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, NHRP, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, SSH, CLI
Encryption Algorithm DES, Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features Firewall protection, NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, content filtering, DiffServ support, MAC address filtering, IPv6 support, Intrusion Prevention System (IPS), firmware upgradable, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), MIMO technology, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, CleanAir technology, DHCP relay, DHCP client
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, BSMI CNS 13438, EN 301 908, VCCI V-3, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 301.489-7, EN 301 489-1, EN 300 386, EN 301 489-24, EN 301 511
RAM 1 GB (installed) / 1 GB (max)
Flash Memory 1 GB (installed) / 1 GB (max)
Status Indicators System, active, wireless
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x RJ-45 ¦ USB: 1 x mini-USB Type A
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 20 Watt
Antenna
Antenna External detachable
Antenna Qty 5
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
