Refurbished C819HG-4G-V-K9 Technical Specification

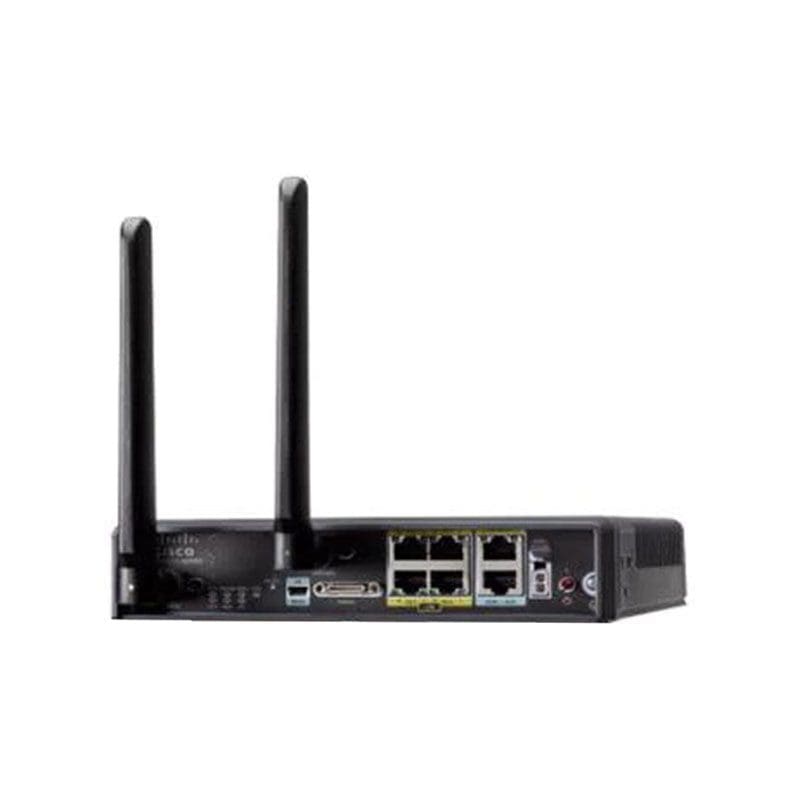

Cisco 819 4G LTE M2M Gateway Router
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :819 4G LTE M2M Gateway
Packaged Quantity :1
Antenna
Antenna Form Factor :External detachable
Antenna Qty :2
RAM
Installed Size :1 GB
Max Supported Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Max Supported Size :1 GB, 1 GB
Modem
Type :Wireless cellular modem
Max Transfer Rate :50 MBps
Mobile Broadband
Cellular Protocol :CDMA 2000 1X EV-DO Rev. A, EDGE, GPRS, GSM, HSDPA, HSPA+, HSUPA, LTE, UMTS, WCDMA
Capacity
Capacity :IPSec VPN tunnels: 20
Networking
Type :Router
Form Factor :Desktop
Connectivity Technology :Wired
WAN Ports Qty :1
Integrated Switch :4-port switch
Data Link Protocol :Ethernet, Fast Ethernet
Routing Protocol :BGP, Bidirectional Forwarding Detection (BFD), EIGRP, GRE, HSRP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, WCCP
Network / Transport Protocol :IPSec
Remote Management Protocol :CLI, HTTP, SNMP 3, SSH, Telnet
Status Indicators :Active, System, Wireless
Key Features :Firewall, USB port, VPN support
Features :Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Class-Based Weighted Fair Queuing (CBWFQ), Content filtering, DHCP client, DHCP relay, DHCP server, DiffServ support, DNS proxy, Dynamic Multipoint VPN (DMVPN), Firewall protection, Firmware upgradable, IGMP snooping, Intrusion Prevention System (IPS), IPv6 support, Low-latency queuing (LLQ), MAC address filtering, NAT support, Quality of Service (QoS), RADIUS support, Spanning Tree Protocol (STP) support, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, VPN support, Weighted Fair Queuing (WFQ)
Compliant Standards :IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Interface Provided
Interfaces :LAN: 4 x 10Base-T/100Base-TX – RJ-45, Management: 1 x RJ-45, USB: 1 x mini-USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
OS Provided
Type :Cisco IOS Advanced IP services
Power Device
Type :External power adapter
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Service Provider :Verizon Wireless
Encryption Algorithm :128-bit AES, 192-bit AES, 256-bit AES, DES, PKI, Triple DES
Authentication Method :RADIUS, TACACS+
MTBF :214,000 Hours
Compliant Standards :BSMI CNS 13438, CISPR 22, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908, EN 301.489.1, EN 301.489.24, EN 301.489.7, EN 301.489-24, EN 301.511, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN300-386, EN55022, EN55024, FCC CFR47 Part 15, ICES-003, IEC 60950-1 Second Edition, IP41, MIL-STD 810G, SAE J 1455, UL 60950-1 Second Edition, VCCI V-3
Dimensions & Weight
Width :7.7 inch
Depth :8.1 inch
Height :1.7 inch
Min Operating Temperature :-13 degree Fahrenheit
Max Operating Temperature :140 degree Fahrenheit
