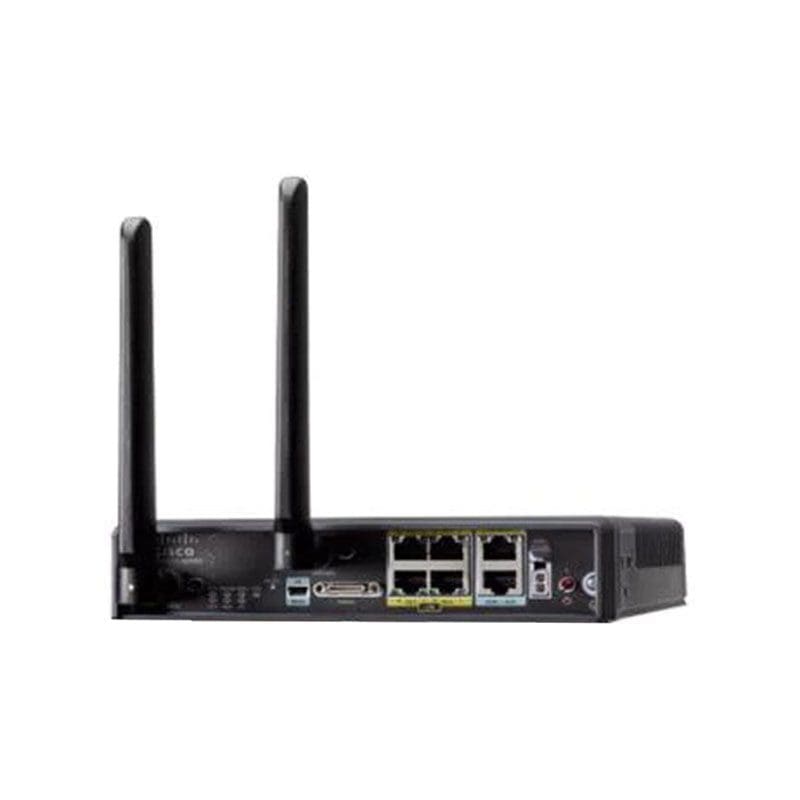

Refurbished C819H-K9 Technical Specification
Cisco 819 Secure Hardened Router
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :819 Secure Hardened Router with Smart Serial
Packaged Quantity :1
RAM
Installed Size :1 GB
Max Supported Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Max Supported Size :1 GB, 1 GB
Capacity
Capacity :IPSec VPN tunnels: 20
Networking
Type :Router
Form Factor :Desktop
Connectivity Technology :Wired
WAN Ports Qty :1
Integrated Switch :4-port switch
Data Link Protocol :Ethernet, Fast Ethernet
Routing Protocol :BGP, Bidirectional Forwarding Detection (BFD), EIGRP, GRE, HSRP, NHRP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, WCCP
Network / Transport Protocol :DDNS, DHCP, IPSec, L2TP, L2TPv3
Remote Management Protocol :CLI, HTTP, SNMP 3, SSH, Telnet
Status Indicators :Active, System
Key Features :Firewall, USB port, VPN support
Features :Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Class-Based Weighted Fair Queuing (CBWFQ), Content filtering, DHCP client, DHCP relay, DHCP server, DiffServ support, DNS proxy, Dynamic Multipoint VPN (DMVPN), Firewall protection, Firmware upgradable, IGMP snooping, Intrusion Prevention System (IPS), IPv6 support, Low-latency queuing (LLQ), MAC address filtering, NAT support, Quality of Service (QoS), RADIUS support, Spanning Tree Protocol (STP) support, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, VPN support, Weighted Fair Queuing (WFQ)
Compliant Standards :IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Interface Provided
Interfaces :LAN: 4 x 10Base-T/100Base-TX – RJ-45, Management: 1 x RJ-45, Serial: 1 x 26 pin Smart Serial, USB: 1 x mini-USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
OS Provided
Type :Cisco IOS Advanced IP services
Cable Details
Cables Included :1 x network cable – 6 ft
Power Device
Type :External power adapter
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :20 watt
Miscellaneous
Encryption Algorithm :128-bit AES, 192-bit AES, 256-bit AES, DES, PKI, Triple DES
MTBF :1,000,000 Hours
Compliant Standards :BSMI CNS 13438, CISPR 22, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908, EN 301.489.1, EN 301.489.24, EN 301.489.7, EN 301.489-24, EN 301.511, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN300-386, EN55022, EN55024, FCC CFR47 Part 15, ICES-003, IEC 60950-1 Second Edition, IP41, MIL-STD 810G, SAE J 1455, UL 60950-1 Second Edition, VCCI V-3
Dimensions & Weight
Width :7.7 inch
Depth :8.1 inch
Height :1.7 inch
Environmental Parameters
Min Operating Temperature :-13 degree Fahrenheit
Max Operating Temperature :140 degree Fahrenheit
