Refurbished C6880-X Technical Specification

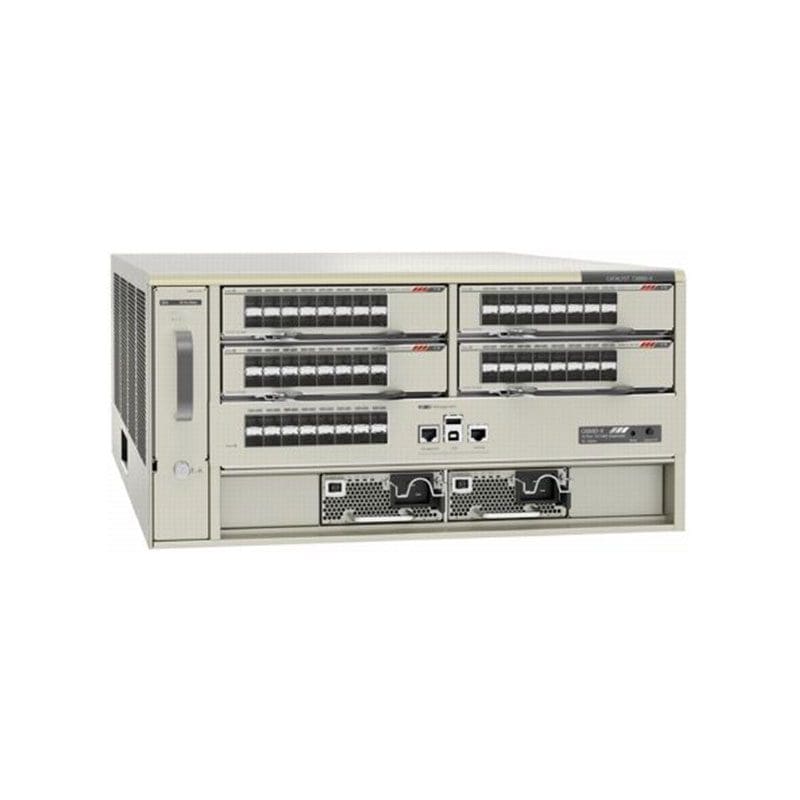

Cisco Catalyst 6880-X-Chassis
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :6880-X-Chassis (XL Tables)
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :4
RAM
Installed Size :4 GB
Performance
Performance :IPv4 routing: 300 Mpps, IPv6 routing: 150 Mpps, Per-slot switching capacity: 220 Gbps, Switching capacity: up to 2 Tbps
Capacity
Capacity :ACL entries: 256000, Domains: 16000, IPv4 routes (Multicast): 128000, IPv4 routes: 2048000, IPv6 routes (Multicast): 128000, IPv6 routes: 1024000, NetFlow entries: 5000000, Virtual interfaces (VLANs): 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Desktop, Rack-mountable
Ports Qty :16
Routing Protocol :GRE
MAC Address Table Size :128K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Features :Access Control List (ACL) support, High Availability, IGMP snooping, MLD snooping, MPLS support, NAT support, NetFlow, Virtual Route Forwarding-Lite (VRF-Lite)
Compliant Standards :IEEE 802.1ae
Ports
Qty :16
Type :1 Gigabit / 10 Gigabit SFP+
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x console RJ-45, 1 x management (LAN) RJ-45, 1 x USB Type A, 1 x USB Type B, 16 x 10GBase-X SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :5
Compliant Standards :AS/NZS 60950, CAN/CSA C22.2 No. 60950, EN 60950, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, ETS 300 386, FCC Class A certified, GR-1089-CORE, IEC 60950, NEBS level 3, UL 60950, VCCI Class A
Dimensions & Weight
Width :17.4 inch
Depth :23 inch
Height :8.8 inch
Weight :47.99 lbs
Service & Support
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-4 degree Fahrenheit
Max Storage Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
