C6880-X Technical Specifications

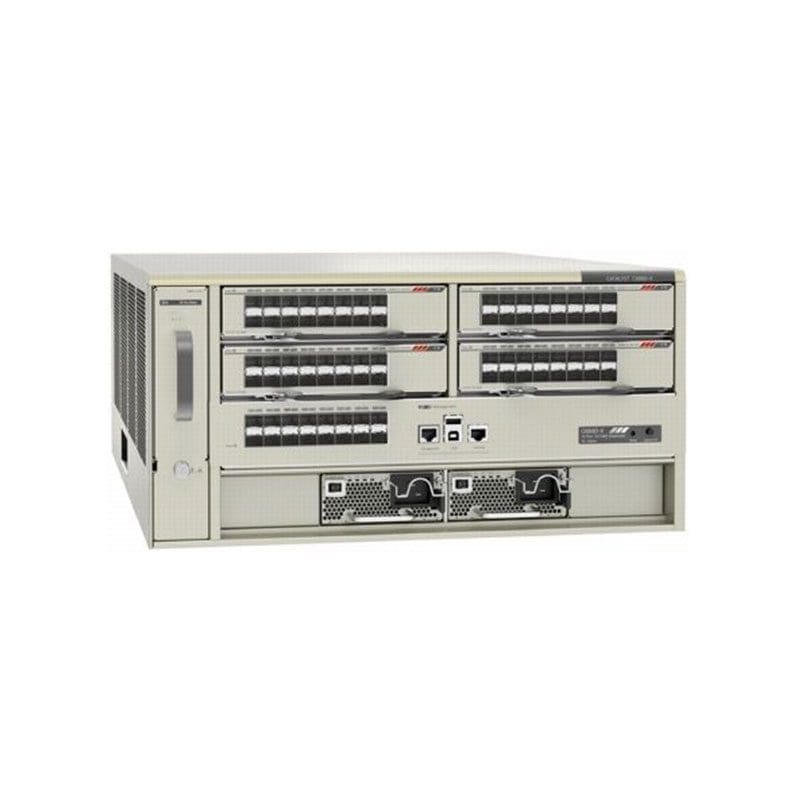

Cisco Catalyst 6880-X-Chassis (XL Tables) Switch 16 ports Managed Rack Mountable
Product Line Cisco Catalyst
Product Series C6800
Product Type Switch Chassis
Product Description
Cisco Catalyst 6880-X-Chassis (XL Tables) Switch 16 ports Managed Rack Mountable
Device Type
Switch – 16 ports – managed
Enclosure Type
Rack-mountable 5U
Subtype
10 Gigabit Ethernet
Ports
16 x 1 Gigabit / 10 Gigabit SFP+
Performance
Per-slot switching capacity: 220 Gbps ¦ Switching capacity: up to 2 Tbps ¦ IPv4 routing: 300 Mpps ¦ IPv6 routing: 150 Mpps
Capacity
IPv4 routes: 2048000 ¦ IPv6 routes: 1024000 ¦ NetFlow entries: 5000000 ¦ IPv4 routes (Multicast): 128000 ¦ IPv6 routes (Multicast): 128000 ¦ Virtual interfaces (VLANs): 4000 ¦ Domains: 16000 ¦ ACL entries: 256000
MAC Address Table Size
128K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
GRE
