C6800-48P-TX Technical Specifications

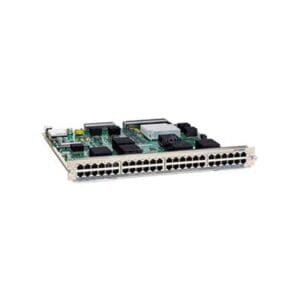

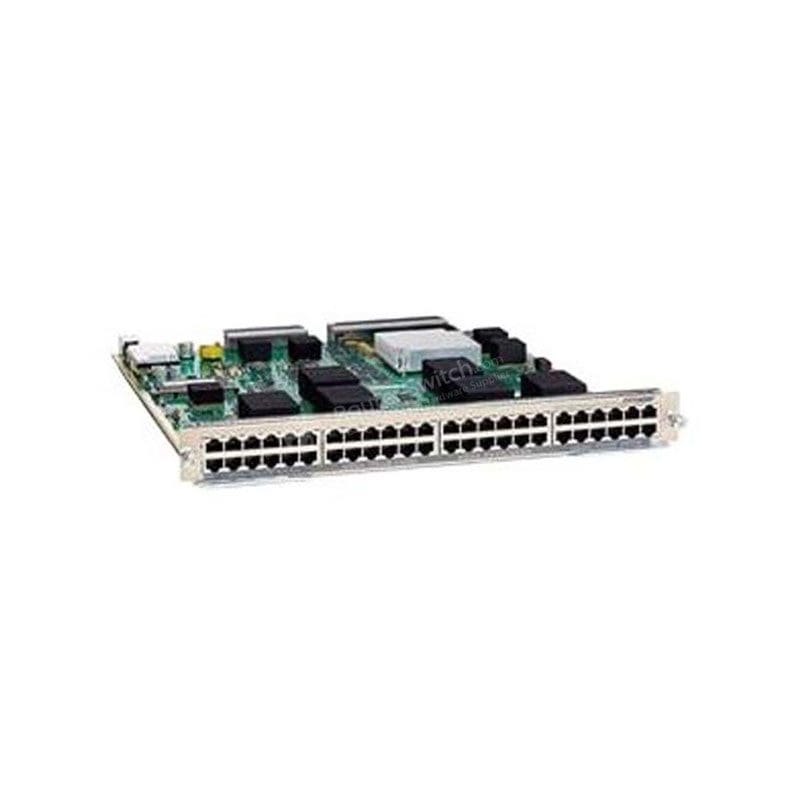

Cisco Catalyst 6800 48-Port 1GE Copper Module with Integrated DFC4
General Information
Manufacturer Cisco Systems, Inc
Cisco Catalyst
Model C6800
Device Type Expansion module
Ethernet Technology: Gigabit Ethernet
Form Factor Plug-in module
Expansion / Connectivity
Interfaces 48 x 1000Base-T – RJ-45
Networking
Ports 1000Base-T x 48
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Performance Forwarding performance: 60 Mpps
Capacity Maximum frame size: 9216
Remote Management Protocol RMON, SMON
Status Indicators Status, link/activity
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Processor / Memory
RAM 1 GB
Miscellaneous
Compliant Standards NEBS, GR-1089-CORE, GR-63-CORE, ETS300019-2-1 Class T1.2, ETS300019-2-2 Class T2.3, ETS300019-2-3
