C53UiG+5HPaxD2HPaxD-US Technical Specification

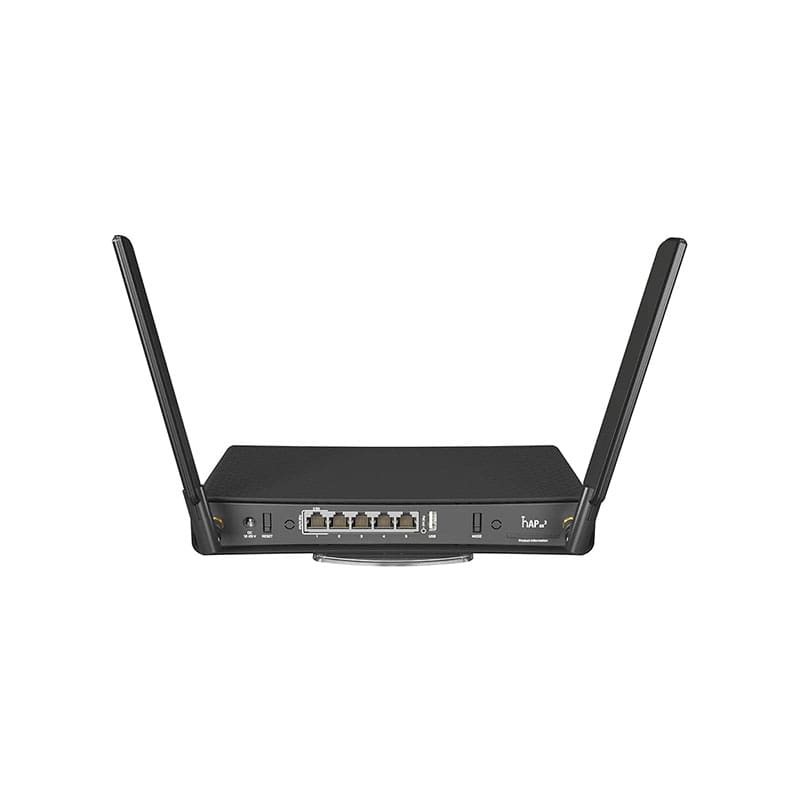

MikroTik hAP ax³ Quad-Core IPQ-6010 1.8 GHz 4x Gigabit Ethernet ports, RouterOS, License level
Manufacturer: MikroTik
Brand: MikroTik
CPU architecture: ARM 64bit
Size of RAM: 1 GB
Storage: 128 MB, NAND
Number of 1G Ethernet ports: 4
Number of 2.5G Ethernet ports: 1 (supports PoE-in/out)
USB: 1 USB 3 type A
Switch chip model: IPQ-6010
Wireless interface model: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless: 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Wireless antenna max gain: 2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi)
Dimensions: 251 x 130 x 39 mm
9.88″ x 5.11″ x 1.53″
Operating system: RouterOS, License level 6
Operating temperature: -40°C to +70°C
Number of DC inputs: 2 (PoE-in, DC jack)
PoE-in input Voltage: 18-28 V
DC jack input Voltage: 12-28 V
PoE-out Passive: PoE Ether1, max out per port output (input < 30 V): 0.625 A
PoE-out total output power: 15 W
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.5 A
Max power consumption (without attachments): 15 W
Max power consumption: 38 W
