C52iG-5HaxD2HaxD-TC Technical Specification

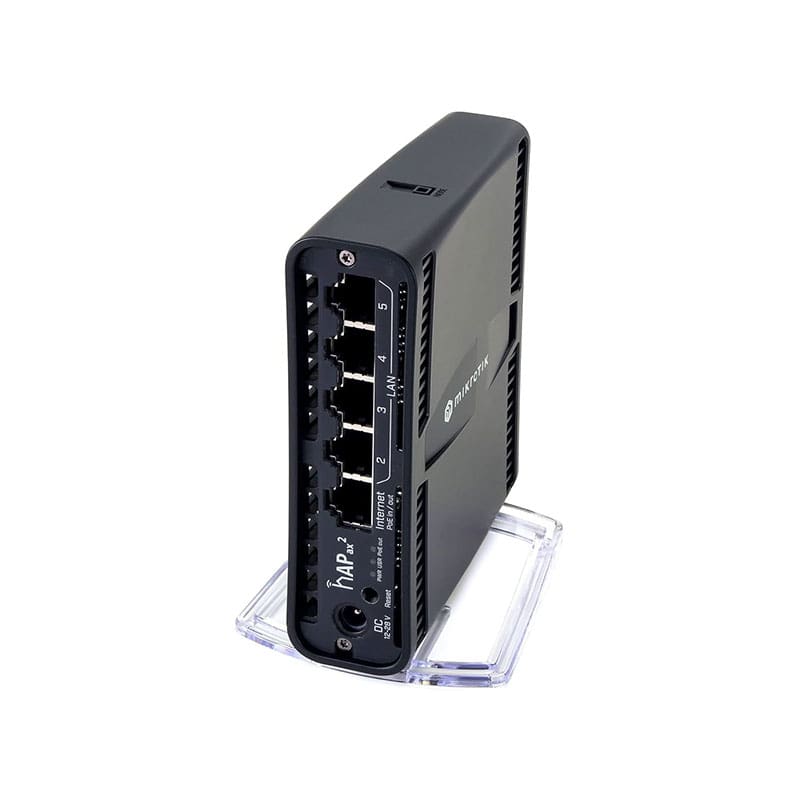

MikroTik hAP ax² (WiFi6) Quad-Core IPQ-6010 864 MHz RAM 1GB RouterOS
Manufacturer: MikroTik
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: 864 MHz
Switch chip model: IPQ-6010
RouterOS license: 4
Operating System: RouterOS (v7 only)
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100’000 hours at 25C
Tested ambient temperature: -40°C to 50°C
IPsec hardware acceleration: Yes
Wireless capabilities
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 4
Antenna gain dBi for 2.4 GHz: 4.5
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
WiFi speed: AX1800
Ethernet
10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 27 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
PoE-out
PoE-out ports: Ether 1
PoE out: Passive PoE
Max out per port output (input 18-30 V): 600 mA
Max total out (A): 0.6 A
Total output current: 0.6
Total output power: 16.8W
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Other
CPU temperature monitor: Yes
Mode button: Yes
