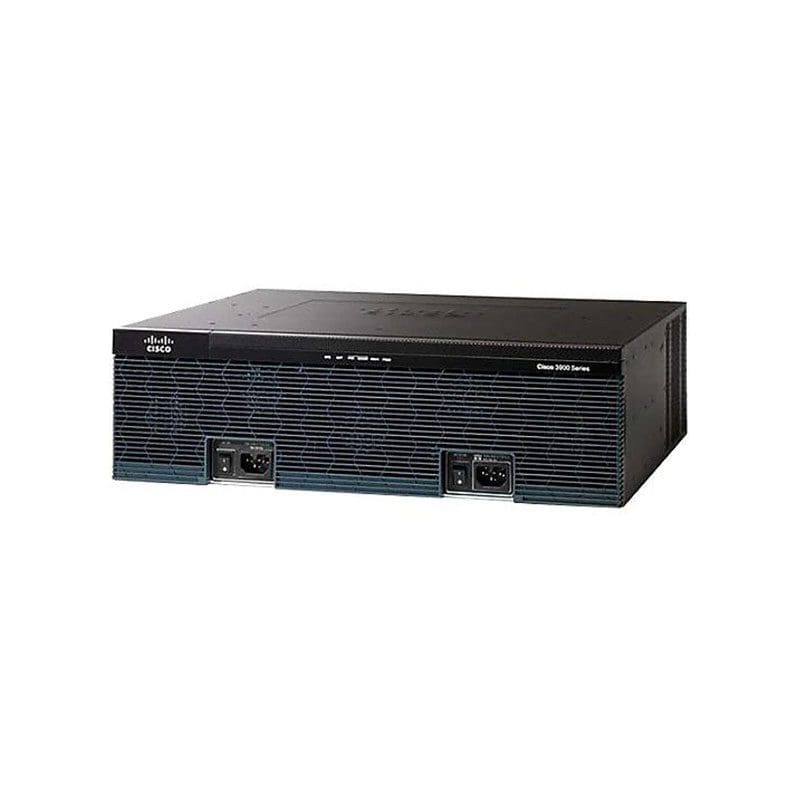

Refurbished C3945-AX/K9 Technical Specifications
Cisco 3945 Application Experience router
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C3945-AX/K9
Brand Name Cisco
Product Series 3900
Product Model 3945
Product Name 3945 Router
Product Type Router
Technical Information−
Interfaces/Ports
Total Number of Ports 3
USB Yes
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
Number of Network (RJ-45) Ports 3
I/O Expansions
Number of Total Expansion Slots 15
Expansion Slot Type EHWIC, PVDM, SFP (mini-GBIC), ISM
Network & Communication
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
VoIP Supported Yes
Management & Protocols
Security Features
VPN
DMVPN
Cisco IOS IPS
Cisco IOS Content Filtering
Flexible Packet Matching (FPM)
Cisco Security Manager
Cisco IOS Firewall
Cisco IOS Zone-Based Firewall
AAA
PKI
Intrusion-Prevention-System
Cisco Security MARS
Memory
Standard Memory 1 GB
Maximum Memory Supported 2 GB
Memory Technology DDR2 SDRAM
Flash Memory 256 MB
Memory Card Supported CompactFlash
Power Description
Input Voltage 110 V AC, 220 V AC
Physical Characteristics
Compatible Rack Unit 3U
Form Factor Rack-mountable, Desktop, Wall Mountable
Height 5.3″
Width 17.3″
Depth 18.8″
Weight (Approximate) 39 lb
Miscellaneous
Package Contents
3945 Router
SPE150 Module
Certifications & Standards Safety:
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950-1
IEC 60950-1
EMC:
47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI V-3
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024, CISPR 24
EN50082-1
Telecom:
TIA/EIA/IS-968
CS-03
ANSI T1.101
ITU-T G.823, G.824
IEEE 802.3
RTTE Directive
