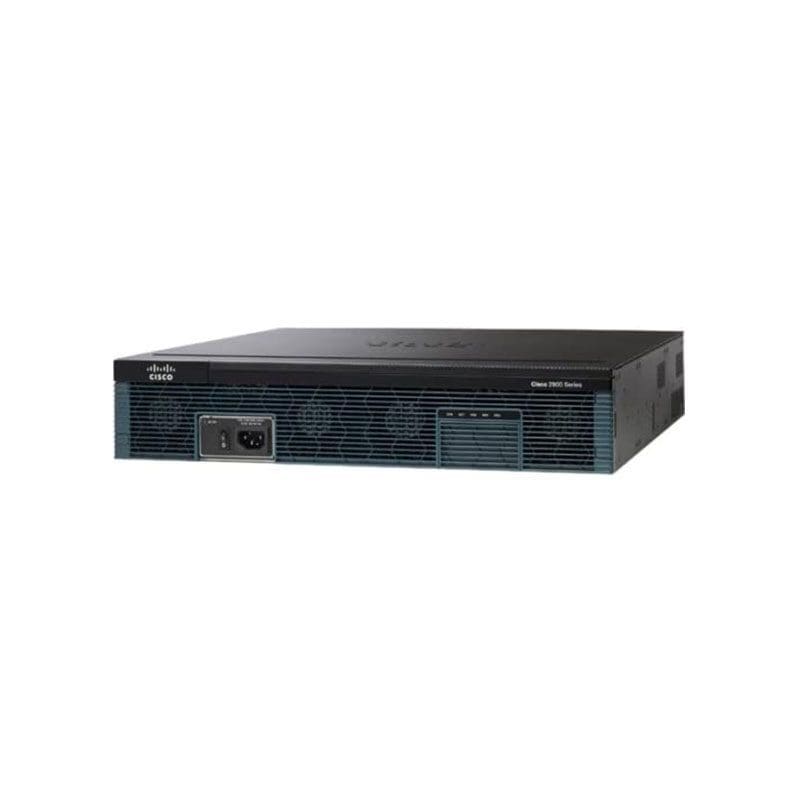

Refurbished C2951-S-SRE-WAE/K9 Technical Specifications
Cisco 2951, SRE 700 SM, NME WAE 502, WAAS Ent, IOS Sec PAK
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C2951-S-SRE-WAE/K9
Brand Name Cisco
Product Series Cisco 2900
Ethernet Technology: Gigabit Ethernet
Product Model C2951
Product Type Router – with Cisco Services Ready Engine 700 Service Module and Wide Area Application Services (WAAS) Network Module (NME-WAE-502)
Form Factor Desktop – modular – 2U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, RSVP, IPSec
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP, RMON
Encryption Algorithm SSL
Features Firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN)
Compliant Standards IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory 3.5 GB
Flash Memory 768 MB (installed) / 8 GB (max)
Hard Drive 620 GB
LED Status Lights Indicators Link activity, power
Connectivity Slots
Router Interfaces-
3 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Management : 1 x console – RJ-45
Management : 1 x console – mini-USB Type B
Serial : 1 x auxiliary – RJ-45
USB : 2 x 4 PIN USB Type A
1 x SFP (mini-GBIC)
Expansion Slots Total (Free)-
4 ( 4 ) x EHWIC
3 ( 3 ) x PVDM
2 ( 1 ) x CompactFlash Card
1 ( 1 ) x ISM
2 ( 1 ) x service module (SM)
Installed Modules Qty (Max) 2
Power Supply
Power Device Power supply – internal
Voltage Required AC 120/230 V ( 50/60 Hz )
