Refurbished C2921-AX/K9 Technical Specifications

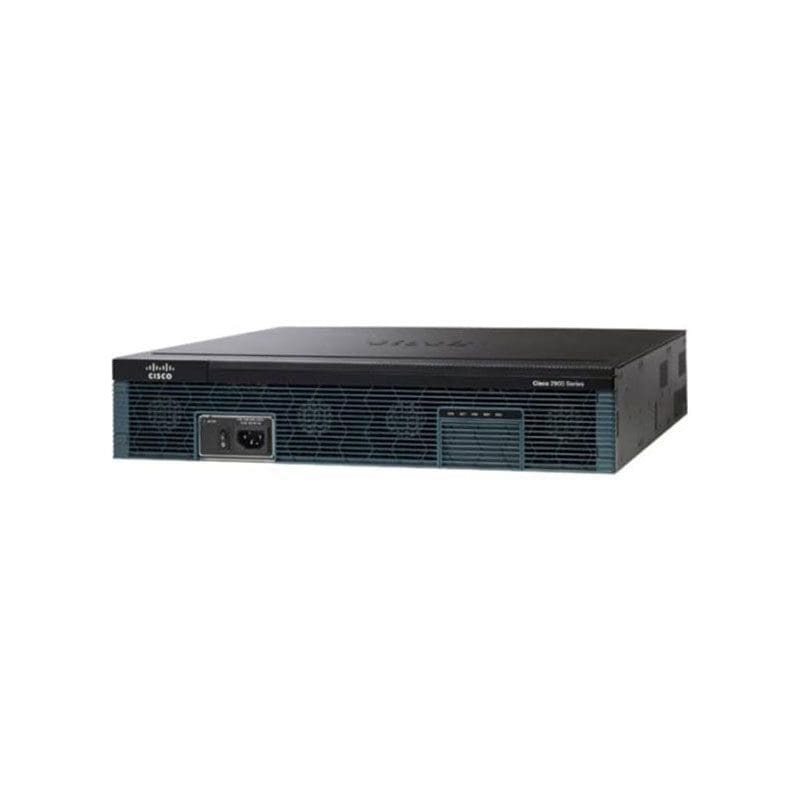

Cisco 2921 router rack mountable
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C2921-AX/K9
Brand Name Cisco
Product Series 2900
Product Model 2921
Product Name 2921 w/3 GE,4 EHWIC,1 SM,256MB CF,1GB DRAM,IPB,SEC, AX
Product Type Router
Technical Information−
Interfaces/Ports
Total Number of Ports 3
USB Yes
Powerline No
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
Number of Broadband (RJ-45) Ports 3
I/O Expansions
Number of Total Expansion Slots 6
Expansion Slot Type SFP, HWIC
Network & Communication
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
VoIP Supported Yes
Management & Protocols
Security Features
IPSec
SSL
Stateful Firewall
DES
3DES
AES
Intrusion Prevention
Content Filtering
Memory
Standard Memory 1 GB
Maximum Memory Supported 2 GB
Memory Technology DDR2 SDRAM
Flash Memory 256 MB
Memory Card Supported CompactFlash
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC, 220 V AC
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 2U
Form Factor Rack-mountable
Height 3.5″
Width 17.3″
Depth 18.5″
Weight (Approximate) 29 lb
Miscellaneous
Package Contents
2921 Integrated Services Router
4 x EHWIC
1 x SM
Certifications & Standards Safety:
UL 60950-1
CAN/CSA
C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950-1
IEC 60950-1
EMC:
47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI V-3
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024
CISPR 24
EN50082-1
Telecom:
TIA/EIA/IS-968
CS-03
ANSI T1.101
ITU-T G.823, G.824
IEEE 802.3
RTTE Directive
Compliant Standards:
ANSI T1.101
IEEE 802.1ag
IEEE 802.1ah
IEEE 802.1Q
IEEE 802.3af
IEEE 802.3ah
ITU-T G.823
ITU-T G.824
