Refurbished C1861W-UC-4FXO-K9 Technical Specifications

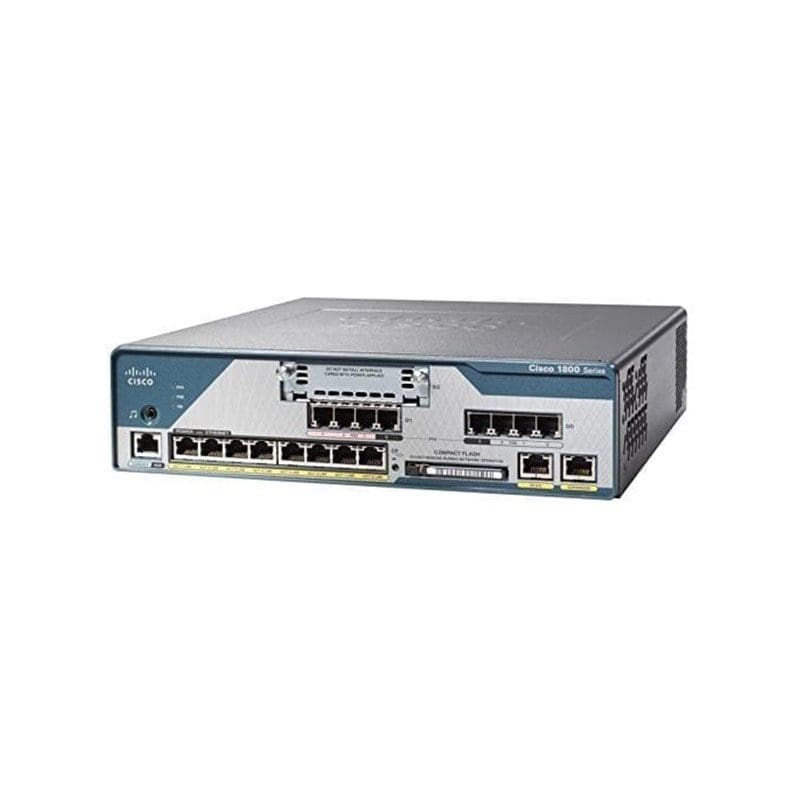

Cisco 1861 Integrated Services Router
Integrated Services Router
Series Cisco 1800
Model C1861W
C1861W-UC-4FXO-K9 1861 WLAN 8-user CME CUE Ph. Lic 4FXS 4FXO 8xPOE HWIC slot This is not a stocked item.
PRODUCT : Cisco 1861 Integrated Services Router, WLAN, 8-user CME, CUE, Ph. Lic, 4FXS, 4FXO, 8xPOE, HWIC slot
LIC : 8-user Cisco Unified Communications Manager Express (CME)
MEMORY : DRAM(256 MB Cisco IOS Software) ; 512 MB Voice messaging COMPACT
FLASH MEMORY : Cisco IOS Software – 128 MB Voice messaging – 1 GB; Compact Flash ONBOARD
ETHERNET PORTS: 1 x 10/100 Fast Ethernet ; 8 x 10-/100-Mbps LAN 1 x 10/100 Ethernet expansion port
WAN SLOT: 1 x HWIC slot WLAN HARDWARE: 802.11b/g ; Automatic rate selection for 802.11b/g 1 Antenna diversity
Indoor range: 1 Mbps at 320 ft (97.54m) Wireless Ethernet Compatibility Alliance (WECA) interoperability
Default antenna gain: 2.2 dBi
FXS PORTS: 4 built-in FXS ports
PSTN INTERFACES : 4 built-in FXO ports
CONSOLE PORT : 1 Up to 115.2 kbps
VOICEMAIL PORTS: 6 ports for voicemail and Automated Attendant
PoE PORTS : Base unit includes 8 built-in 10/100 PoE ports
DIMENSIONS: 66 x 266 x 280 mm (H x W x D)
RACK HEIGHT: 1.5 rack unit (RU)
* Single 3.5-mm audio port or wave file stored in flash memory
