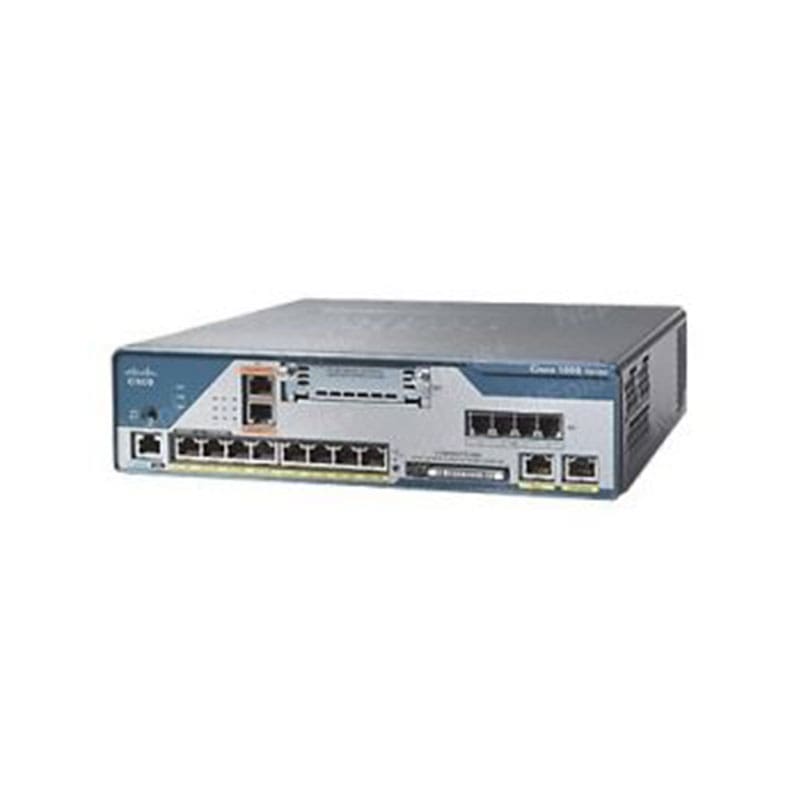

C1861-UC-2BRIK9 Technical Specifications
Cisco 1861 Router 8-port switch WAN ports: 4 VoIP gateway
Device Type
Router – 8-port switch (integrated)
Enclosure Type
Desktop – 1.5U
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet
Remote Management Protocol
HTTP
Features
VLAN support, Data prioritization (Qos) for VoIP applications
Compliant Standards
IEEE 802.3af, VCCI, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, CS-03, EN 61000-4-5, CSA C22.2, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, EN 300 386
IP Telephony
VoIP Functionality
VoIP gateway
Voice Codecs
G.711, G.729
Telephony Interfaces
4 phone (FXS), 2 line (ISDN BRI)
Expansion / Connectivity
Interfaces
WAN: 1 x 10Base-T/100Base-TX – RJ-45 ¦ LAN: 8 x 10Base-T/100Base-TX – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Audio: 1 x mini-phone 3.5 mm ¦ Phone line: 4 x FXS – RJ-11 ¦ WAN: 2 x BRI – RJ-45 ¦ Management: 1 x console
Expansion Slots
1 (total) / 1 (free) x HWIC
Installed Modules Qty (Max)
0 (installed) / 1 (max)
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 – 60 Hz)
Miscellaneous
Rack Mounting Kit
Optional
Pricing Type
Refurbished
Software / System Requirements
OS Provided
Cisco IOS SP services
Software Included
Cisco Unity Express 2.3, Cisco Unified Communications Manager Express (8 users)
Dimensions & Weight
Width
10.5 in
Depth
11.1 in
Height
2.6 in
Weight
7.94 lbs
