C1117-4PMLTEEAWE Technical Specifications

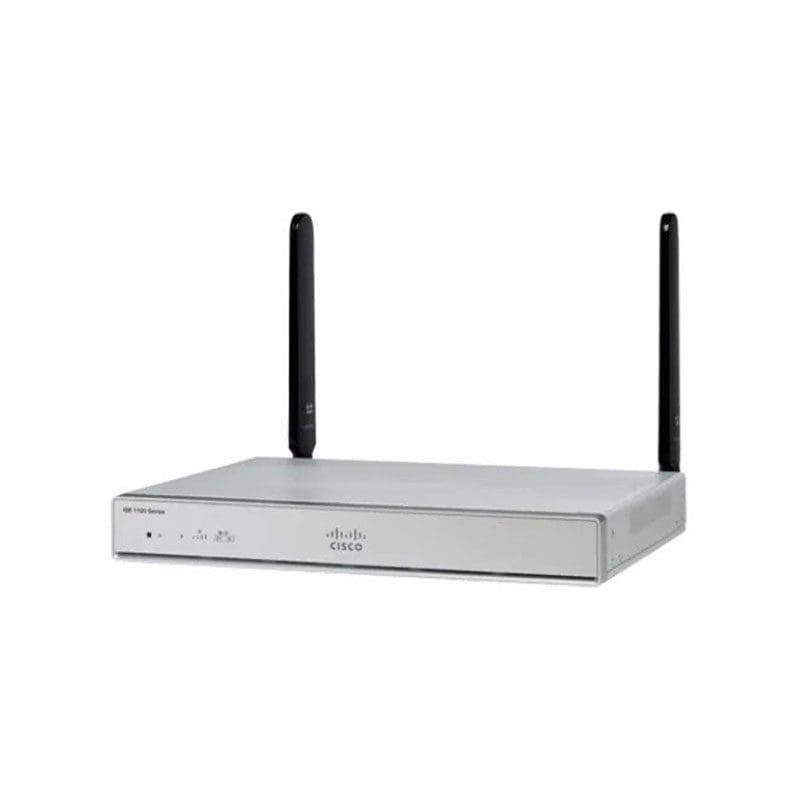

Cisco 1000 Series Integrated Services Router
Manufacturer: Cisco
Expansion Slots
Type : SIM
Model : 1117
Packaged Quantity : 1
Interface Provided
Connector Type : GPS connector
Type : Antenna
Connector Type : RJ-45
Type : LAN
Connector Type : RJ-45/SFP
Type : WAN
Interface : Console
Type : USB 3.0
Interface : VDSL2+ / ADSL2 over POTS
Internet of Things (IoT)
Communications Technology : LTE Cat 6
Modem
Digital Signaling Protocol : ADSL2, VDSL2+
Type : DSL modem / wireless cellular modem
Performance
Type : Encryption throughput
Value : 250 Mbps
Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Slot Provided
Free Qty : 1
Total Qty : 1
Flash Memory
Installed Size : 4 GB
Networking
Form Factor : Desktop
Integrated Switch : 4-port switch
Status Indicators : Status
Type : Router
WAN Ports Qty : 2
RAM
Installed Size : 4 GB
