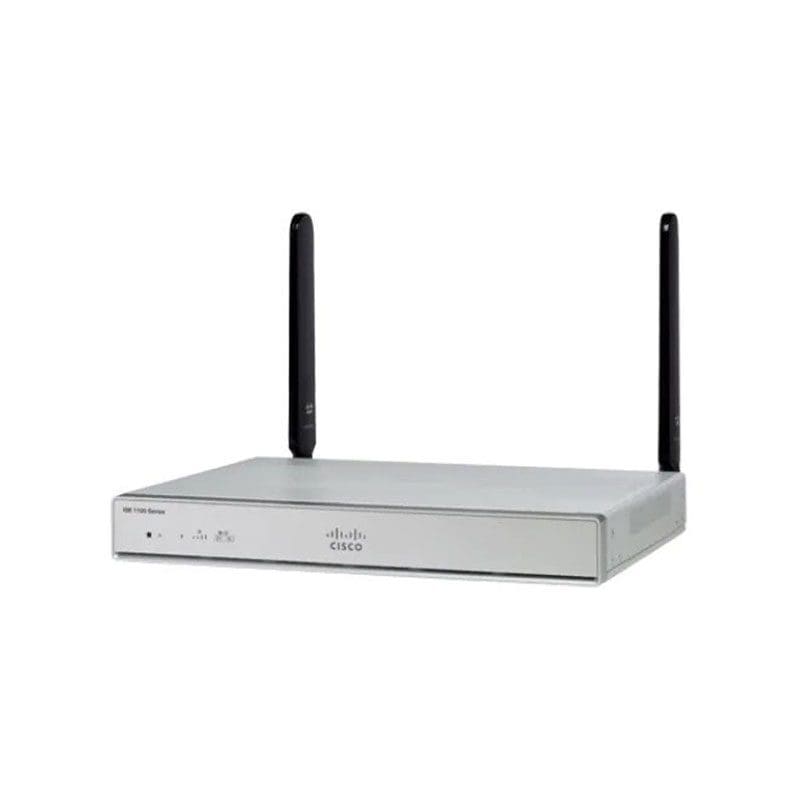

C1116-4PLTEEAWE Technical Specifications
Cisco 1000 Series Integrated Services Router
Manufacturer: Cisco
Device Type
Router – DSL modem / wireless cellular modem – 4-port switch (integrated)
Enclosure Type
Desktop
Digital Signaling Protocol
ADSL2, VDSL2+
Cellular Protocol
UMTS, TD-SCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE
WAN Ports Qty
2
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz / 5 GHz
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
12.7 in x 9.6 in x 1.7 in
Weight
5.71 lbs
