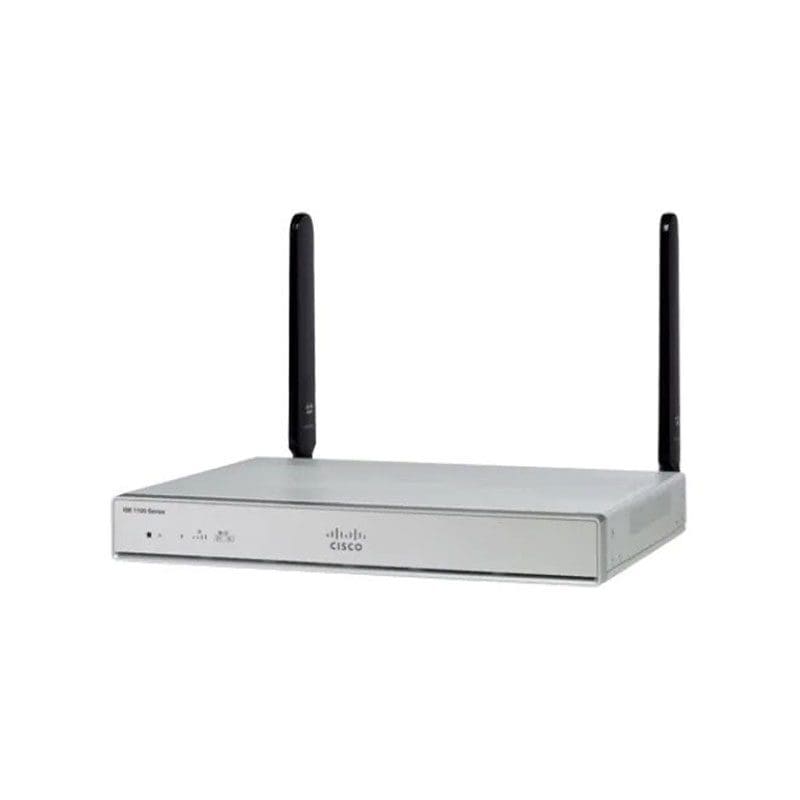

C1111-8PLTELAWD Technical Specifications
Cisco 1100 Series Integrated Services Router
Manufacturer: Cisco
Manufacturer Part Number: C1111-8PLTELAWD
Description
ISR 1100 8P Dual GE WAN w/ LTE Adv SMS/GPS 802.11ac -D WiFi
AC Input Power
Input voltage
Universal 100 to 240 VAC
Frequency
50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current
90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port
One RJ-45: Separate console port
USB port
USB 3.0 Type A host port
USB devices supported:
USB flash memory
Console port
10/100/1000 Gigabit Ethernet
Two GE ports allocated among RJ45 and SFP as:
Wireless VLANs
32 (encrypted and non-encrypted VLANs)
Wireless specifications
2×2 .11ac Wave 2
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
