C1111-8PLTEEAWA Technical Specifications

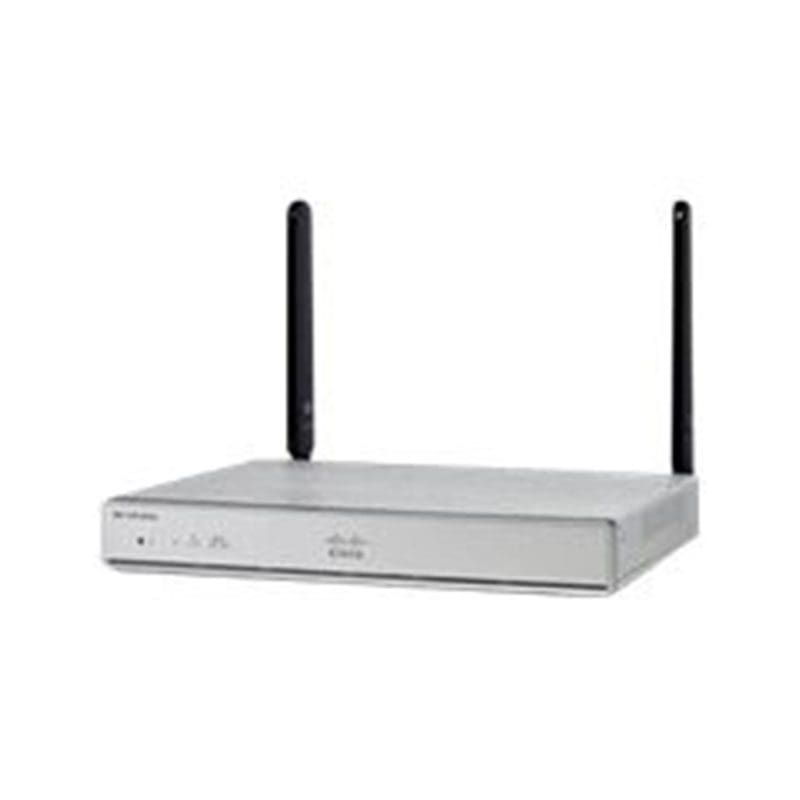

Cisco 1100 Series Integrated Services Router
Description
ISR 1100 8P Dual GE WAN w/ LTE Adv SMS/GPS 802.11ac -A WiFi
Physical Properties
Dimensions (H x W x D)
LTE models:
H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet)
Weight with AC PS (w/o modules)
5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage
Universal 100 to 240 VAC
Frequency
50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current
90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port
One RJ-45: Separate console port
USB port
USB 3.0 Type A host port
USB devices supported:
USB flash memory
