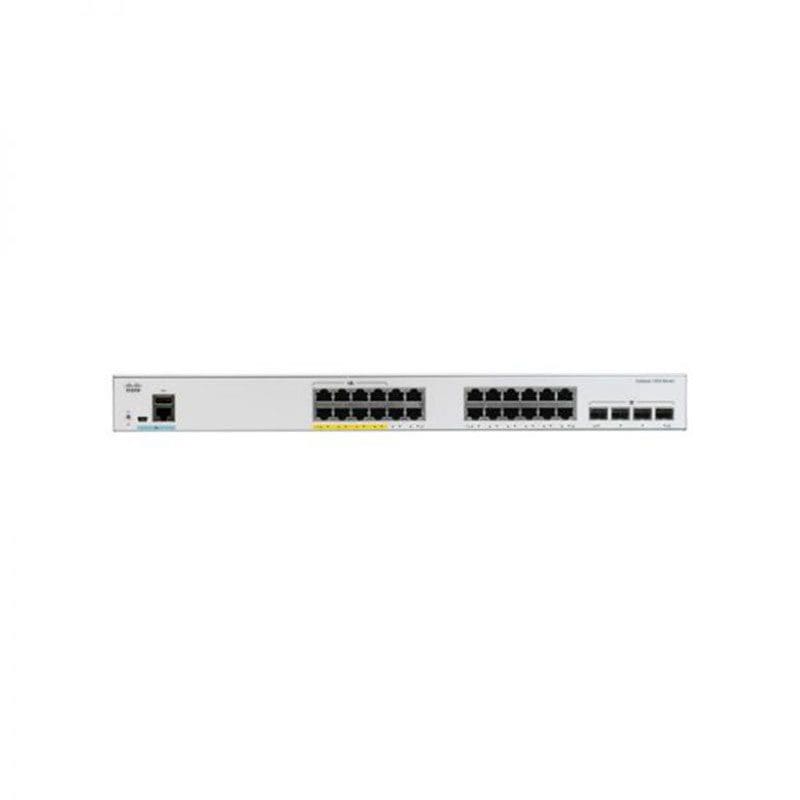

C1000-24P-4X-L Technical Specifications
Cisco Catalyst 1000 with 24 Port
Product Line: Cisco Catalyst
Product Series: C1000
Hardware
24 Port Network Switch
Interface 24x 10/100/1000 Ethernet ports, 4 SFP uplinks
Ethernet Technology: Gigabit Ethernet
PoE power budget 195W
Available PoE power per port 30W for any 6 ports or 15W for any 13 ports
Console ports
1x RJ-45 Ethernet
USB mini-B
USB-A port for storage and Bluetooth console
Indicator LEDs
Per-port status: link integrity, disabled, activity
System status: system
Dimensions (WxDxH in inches) 17.5 x 9.45 x 1.73
Weight 2.78
Memory and processor
CPU
ARM v7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
64 Gbps
Switching bandwidth
128 Gbps
Forwarding rate
(64‑byte L3 packets)
41.67 Mpps
