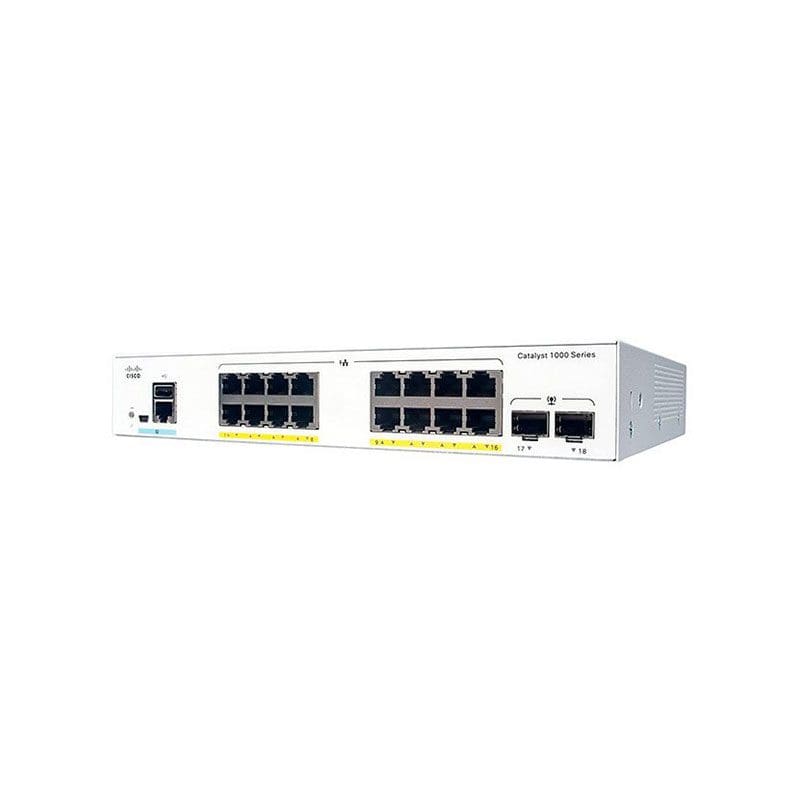

C1000-16FP-2G-L Technical Specifications
Cisco Catalyst 1000 Series 16 Port GE PoE+240W 2 SFP Uplink
Product Line: Cisco Catalyst
Product Series: C1000
Hardware
16 Port Network Switch
Interface 16x 10/100/1000 Ethernet PoE + ports and 240 PoE budget, 2 SFP uplinks
Console ports
1x RJ-45 Ethernet
Ethernet Technology: Gigabit Ethernet
USB mini-B
USB-A port for storage and Bluetooth console
Indicator LEDs
Per-port status: link integrity, disabled, activity
System status: system
Dimensions (WxDxH in inches) 10.56 x 12.14 x 1.73
Weight 2.49
Memory and processor
CPU
ARM v7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
18 Gbps
Switching bandwidth
36 Gbps
Fowarding rate
(64 ‑ bytes L3 packets)
26.78 Mpps
Unicast MAC addresses
15,360
IPv4 unicast direct routes
542
