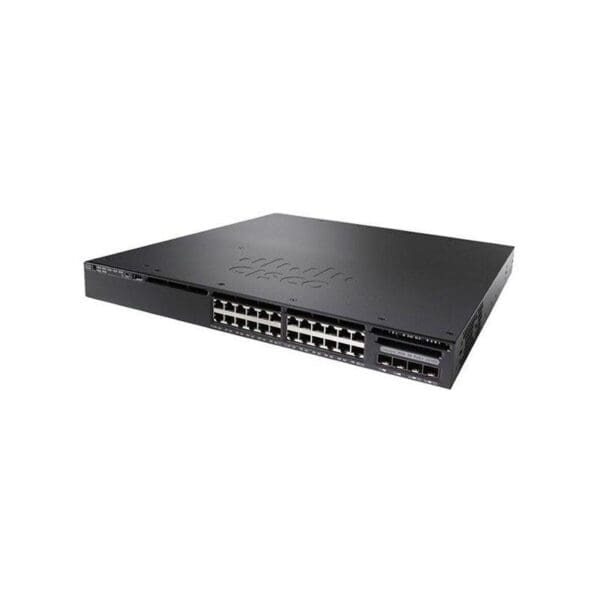

Refurbished C1-WS3650-24XPD/K9 Technical Specifications
Cisco ONE Catalyst 3650 24 Port mGig, 2x10G Uplink, LAN Base
Product Line Cisco ONE Catalyst
Product Series C1-WS3650
Device Type: Switch – 24 ports – managed – stackable
Enclosure Type:: Desktop, rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 390 W
Performance: Switching capacity: 88 Gbps ¦ Forwarding performance: 68.45 Mpps
Capacity: IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features: Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM: 4 GB
Flash Memory: 2 GB
Status Indicators: Port transmission speed, port duplex mode, system, active, status, PoE
