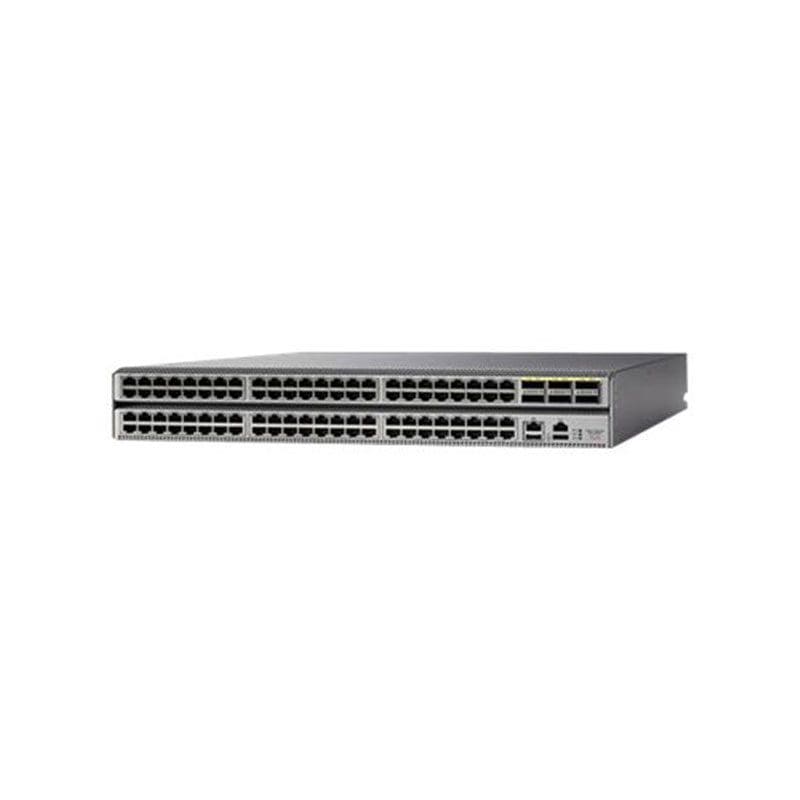

Refurbished C1-N9K-C93120TX Technical Specifications
Cisco ONE Nexus 9300 Switch 96 Port Managed Rack mountable
Interface Provided
Comments : Downlink
Connector Type : RJ-45
Qty : 96
Type : 10GBase-T
Comments : Uplink
Connector Type : QSFP+
Qty : 6
Type : 40Gbit LAN
Qty : 1
Type : Management (Gigabit LAN)
Qty : 2
Type : USB
Type : Serial (RS-232)
Networking
Advanced Switching : Layer 3
Compliant Standards : IEEE 801.1p, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Features : Access Control List (ACL) support, Broadcast Storm Control, DiffServ Code Point (DSCP) support, Flow control, Link Aggregation Control Protocol (LACP), LLDP support, Load balancing, Modular design, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, RDMA support, Spanning Tree Protocol (STP) support, Unicast Storm Control, VLAN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing
Form Factor : Desktop, Rack-mountable
MAC Address Table Size : 96K entries
Manageable : Yes
Ports Qty : 96
Remote Management Protocol : RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Subcategory : Network hubs and switches
Subtype : 10 Gigabit Ethernet
Type : Switch
Miscellaneous
Authentication Method : RADIUS, TACACS+
Color Category : Gray
Compliant Standards : AS/NZS 60950-1, AS/NZS CISPR 22, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, RoHS, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) : 2
Rack Mounting Kit : Included
Environmental Parameters
Humidity Range Operating : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 9300
Packaged Quantity : 1
Product Line : Cisco ONE Nexus
Product Series N9K
Power Device
80 PLUS Certification : 80 PLUS Platinum
Hot-Plug : Hot-plug
Installed Qty : 0
Max Supported Qty : 2
Power Redundancy : Yes
Type : Internal power supply
Processor
Clock Speed : 2.5 GHz
Installed Qty : 1
Software
Type : Cisco NX-OS
Dimensions & Weight
Depth : 22.5 in
Height : 3.5 in
Width : 17.5 in
Capacity
Type : Equal-Cost Multipathing (ECMP) ways
Value : 64
Type : Host table entries (IPv4)
Value : 88000
Type : IGMP snooping entries
Type : IPv4 routes (Multicast)
Value : 32000
Type : Longest prefix match (LPM) entries (IPv4)
Value : 16000
Type : Multiple Spanning Tree Protocol instances
Type : Rapid Per-VLAN Spanning Tree Plus instances
Value : 507
Type : Virtual interfaces (VLANs)
Value : 4096
Type : Virtual Routing and Forwarding (VRF) entries
Value : 1000
Flash Memory
Installed Size : 64 GB
Performance
Type : Bandwidth
Value : 2.56 Tbps
Ports
Qty : 96
Type : 10GBase-T
Ports (2nd)
Qty : 6
Type : 40 Gigabit QSFP+ (uplink)
RAM
Installed Size : 16 MB
