C1-N5548UP4N2248TP Technical Specifications

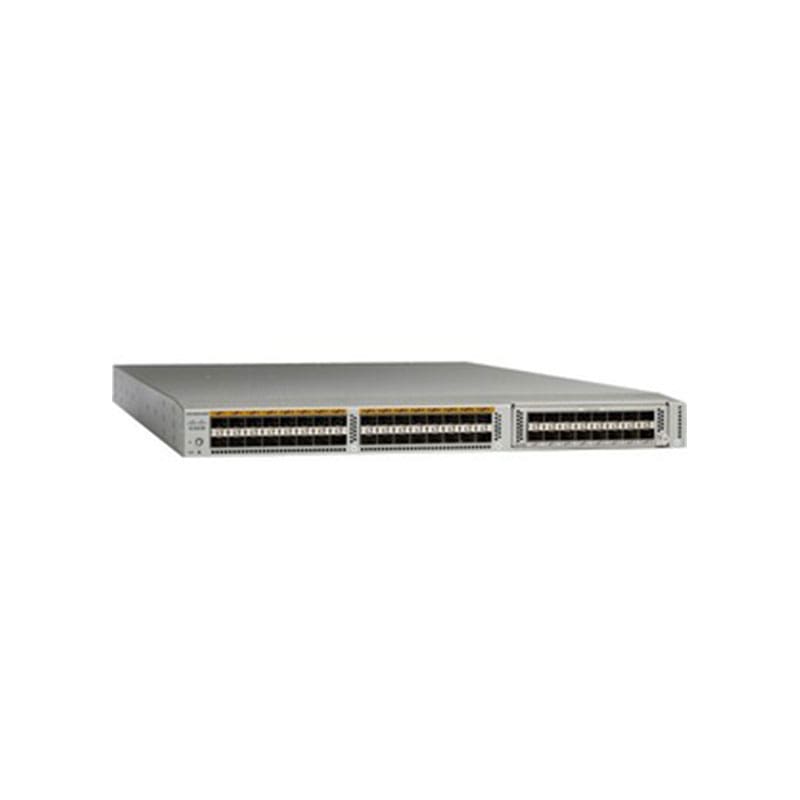

Cisco Nexus 5548UP Layer 3 Switch Manageable 10 Gigabit Ethernet 10GBase-X 3 Layer Supported Modular Optical Fiber 1U High Rack-mountable
Manufacturer Part Number: C1-N5548UP4N2248TP
Brand Name: Cisco
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 32 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 32
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 32
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 29.5″
Weight (Approximate): 35 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
