C1-N3K-C3264Q Technical Specifications

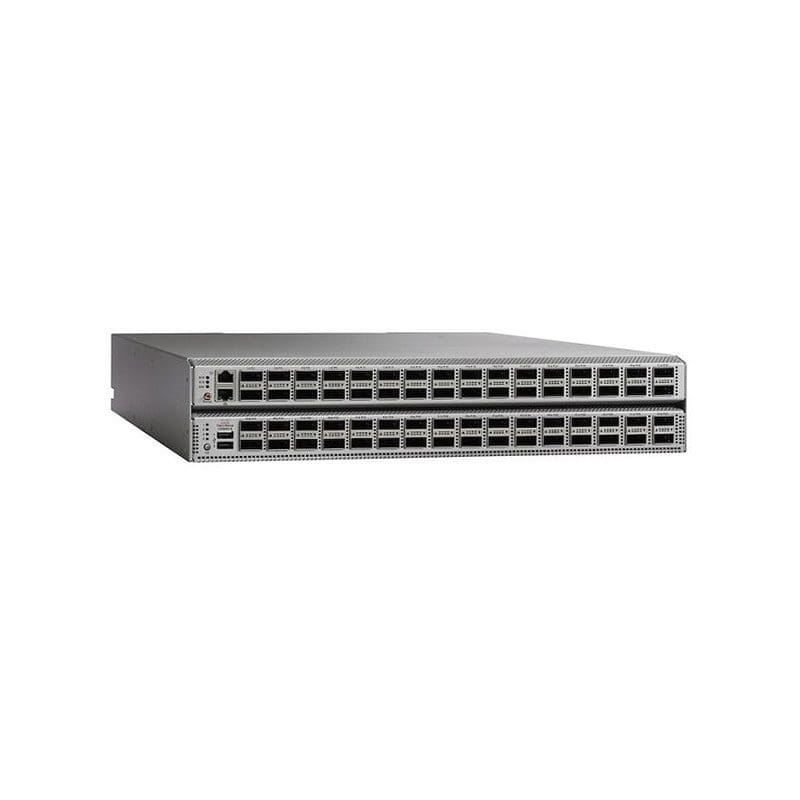

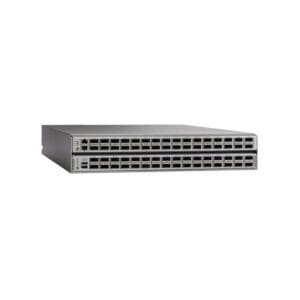

Cisco ONE Nexus 3264Q Switch L3 Managed 64 x 40 Gigabit QSFP+ Rack Mountable
Product Line Cisco ONE Nexus
Product Series N3K
Device Type: Switch – 64 ports – L3 – managed
Enclosure Type Rack-mountable 2U
Subtype 40 Gigabit Ethernet
Ports 64 x 40 Gigabit QSFP+
Performance Switching capacity: 5.12 Tbps ¦ Forwarding performance: 3.8 Bpps
Capacity Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 7000 ¦ ACL entries (egress): 1000 ¦ Multicast entries (Layer 3): 64000 ¦ Host table entries (IPv4): 72000 ¦ QoS hardware entries: 8
MAC Address Table Size 136K entries
Jumbo Frame Support 9216 bytes
