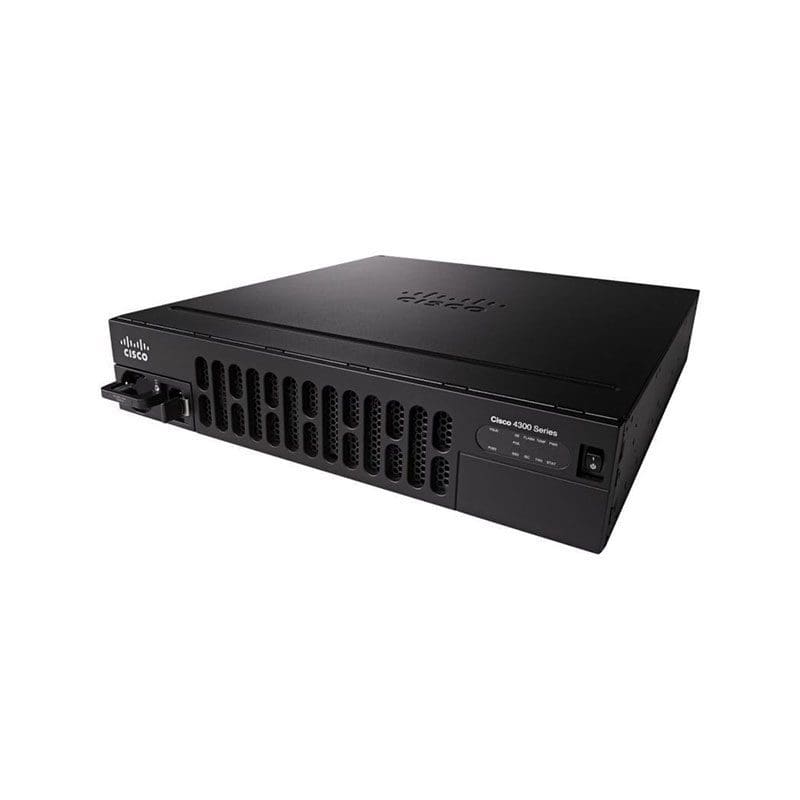

Refurbished C1-CISCO4351/K9 Technical Specifications
Cisco ONE ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G DRAM.IPB)
Product Number: C1-CISCO4351/K9
Product Line Integrated Services Route
Product Description: Cisco ONE ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G DRAM.IPB)
Product Series CISCO 4300
Aggregate Throughput: 200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports: 3
RJ-45-based ports: 3
SFP-based ports: 3
Enhanced service-module slots: 2
Doublewide service-module slots: 1 (assumes no singlewide SM-X modules installed)
NIM slots: 3
OIR (all I/O modules): Yes
Onboard ISC slot: 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM: 4 GB
Maximum memory DDR3 ECC DRAM: 16 GB
Default memory DDR3 ECC DRAM (data plane): NA
Maximum memory DDR3 ECC DRAM (data plane): NA
Default memory DDR3 ECC DRAM (control/services plane): NA
Maximum memory DDR3 ECC DRAM (control/services plane): NA
Default flash memory: 4 GB
Maximum flash memory: 16 GB
External USB 2.0 slots (type A): 2
USB console port -type B mini (up to 115.2 kbps): 1
Serial console port – RJ45 (up to 115.2 kbps): 1
Serial auxiliary port – RJ45: 1
Power-supply options
Internal: AC, DC, and PoE
Redundant power supply: N/A
AC input voltage: 100 to 240 VAC autoranging
AC input frequency: 47 to 63 Hz
AC input current range, AC power supply (maximum): 7.1 to 3.0A
AC input surge current: 60 A peak and less than 12 Arms per half cycle
Typical power (no modules) (watts): 48
Maximum power with AC power supply (watts): 430
Maximum power with PoE power supply (platform only) (watts): 990
Maximum endpoint PoE power available from PoE power supply (watts): 500
