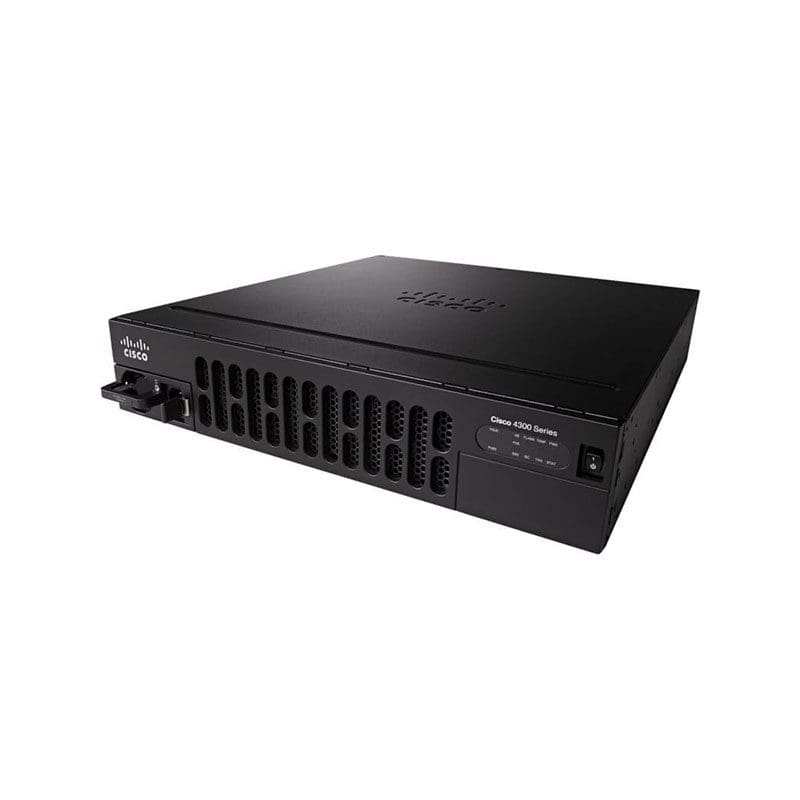

C1-CISCO4351/K9 Technical Specifications
Cisco ONE ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G DRAM.IPB)
Product Number:
Product Line Integrated Services Route
Product Series CISCO 4300
Aggregate Throughput: 200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports: 3
RJ-45-based ports: 3
SFP-based ports: 3
Enhanced service-module slots: 2
NIM slots: 3
OIR (all I/O modules): Yes
Onboard ISC slot: 1
Maximum memory DDR3 ECC DRAM: 16 GB
Default memory DDR3 ECC DRAM (data plane): NA
Maximum memory DDR3 ECC DRAM (data plane): NA
Default memory DDR3 ECC DRAM (control/services plane): NA
Maximum memory DDR3 ECC DRAM (control/services plane): NA
Default flash memory: 4 GB
Maximum flash memory: 16 GB
External USB 2.0 slots (type A): 2
USB console port -type B mini (up to 115.2 kbps): 1
