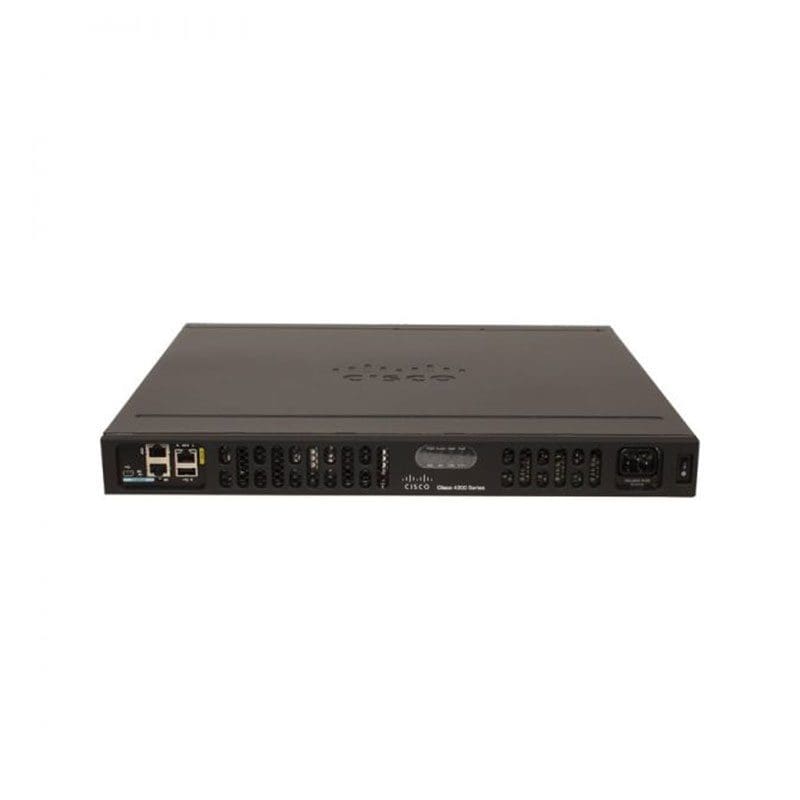

C1-CISCO4331/K9 Technical Specifications
Cisco ONE ISR 4331 (3GE.2NIM.1SM.4G FLASH.4G DRAM.IPB)
Product Number: C1-CISCO4331/K9
Product Model CISCO4331
Product Series CISCO 4300
Integrated Services Router
Aggregate Throughput: 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports: 3
RJ-45-based ports: 2
SFP-based ports: 2
Ethernet Technology: Gigabit Ethernet
Enhanced service-module slots:
Doublewide service-module slots: 0
NIM slots: 2
OIR (all I/O modules): Yes
Onboard ISC slot: 1
Maximum memory DDR3 ECC DRAM: 16 GB
Default memory DDR3 ECC DRAM (data plane): NA
Maximum memory DDR3 ECC DRAM (data plane): NA
Default memory DDR3 ECC DRAM (control/services plane): NA
Maximum memory DDR3 ECC DRAM (control/services plane): NA
Default flash memory: 4 GB
Maximum flash memory: 16 GB
External USB 2.0 slots (type A): 1
